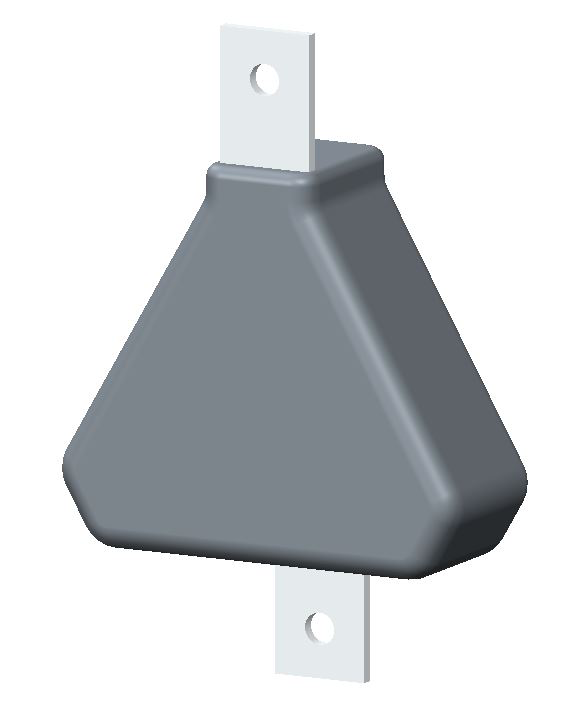

Railway Surge Arrester 3EB3, DC traction 750 V–3 kV, class DC-C, VDV 525 "A1", silicone housing
3EB3
- Gapless metal-oxide surge arrester for DC railway traction systems (750 V, 1.5 kV and 3 kV DC), arrester designation DC-C
- VDV 525 function "A1" — full catenary protection at power feeding points, section ends, coupling points and current taps
- Higher charge-transfer and energy class than 3EB2: Qrs 7.5 As, thermal energy rating 26–104 kJ per rated voltage
- Silicone-rubber housing, 40 kA short-circuit current capability, for urban transport (light rail, metro, tram) and rail electrification at travel speeds up to 160 km/h
- Complies with DIN EN 50526-1 (DC railway surge arresters), DIN EN 45545-2 (fire protection) and IEC 61373 (shock & vibration); routine test certificate with every arrester
Sign in to see your price, availability and framework terms for 3EB3.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EB3
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EB3 covers up to 3 kV of the railway arresters range (≤ 25 kV across the category, √ scale).
Specifications
Main — DC traction arrester per VDV 525
| Product family | 3EB3 |
| Product type | Metal-oxide surge arrester (gapless) |
| Application | DC railway traction power supply — catenary, substations, urban transport (light rail, metro, tram cars), rail electrification |
| Arrester designation | DC-C |
| VDV 525 function | A1 (catenary / feeding-point protection) |
| Travel speed | up to 160 km/h |
Electrical characteristics (catalog table, all ratings)
| Nominal system voltage Un | 0.75 / 1.5 / 3.0 kV DC |
| Rated voltage Ur | 1.0 / 2.0 / 4.0 kV |
| Continuous operating voltage Uc | 1.0 / 2.0 / 4.0 kV |
| Nominal discharge current In | 20 kA |
| Charge transfer rating Qrs | 7.5 As |
| Thermal energy rating Wth | 26 / 52 / 104 kJ |
| Max. residual voltage at 8/20 µs, 10 kA | 2.2 / 4.4 / 8.8 kV |
| Max. residual voltage at 8/20 µs, 20 kA | 2.3 / 4.7 / 9.4 kV |
Mechanical / housing (identical for all ratings)
| Housing material | Silicone rubber |
| Height [H] | 270 mm (housing 230 mm) |
| Width × depth | 179 × 71 mm |
| Creepage distance | 219 mm |
| Flashover distance | 210 mm |
| Rated short-circuit current Is | 40 kA |
| Specified short-term load SSL | 160 N |
| Specified long-term load SLL | 110 N |
| Weight | 5.6 / 5.9 / 6.4 kg (Ur 1 / 2 / 4 kV) |
| Terminal | Flat terminal 40 mm, hole Ø 13 mm (top and bottom) |
Insulation withstand & standards
| Lightning impulse withstand voltage (1.2/50 µs) | 25 kV |
| Power-frequency withstand voltage (1 min, wet) | 15 kV |
| Standards | DIN EN 50526-1 (railway DC surge arresters), DIN EN 45545-2 (fire protection on railway vehicles), IEC 61373 (shock & vibration) |
| Application recommendation | VDV 525 (overvoltage protection of DC railways against lightning strikes) |
| Testing | Routine test and routine test certificate for every arrester |
Options & variants
Catalog ratings from "Surge arresters for railway applications" product guide, 3EB2/3EB3 table (verbatim). All 3EB3 types: In 20 kA, Qrs 7.5 As, designation DC-C, VDV 525 function A1, housing height 270 mm, creepage 219 mm.
| Order No. | Un (kV DC) | Ur (kV) | Uc (kV) | Wth (kJ) | Residual voltage 8/20 µs 20 kA (kV) | Weight (kg) |
|---|---|---|---|---|---|---|
| 3EB3 010-7D | 0.75 | 1.0 | 1.0 | 26 | 2.3 | 5.6 |
| 3EB3 020-7D | 1.5 | 2.0 | 2.0 | 52 | 4.7 | 5.9 |
| 3EB3 040-7D | 3.0 | 4.0 | 4.0 | 104 | 9.4 | 6.4 |
Documents & downloads
Product guide Surge arresters for railway applications — full product guide (3EB2/3EB3 on pp. 12–13)
Mini-catalog MiniKat 3EB2 and 3EB3 — VDV 525 application, electrical & mechanical data, dimensions
Also covered in the technical library
Mini-catalog 3EB2 and 3EB3 Surge Arresters for Railway Applications — Technical Data
Brochure Our portfolio of surge arresters & composite insulators — Siemens Energy
