Surge arresters
Metal-oxide surge arresters protect transformers, switchgear, cables and lines against lightning and switching overvoltages. The portfolio spans medium-voltage distribution networks to 800 kV station class — silicone cage designs, porcelain and polymer hollow-core housings, externally gapped line arresters and railway DC/AC types.
Browse surge arresters
HV station arresters
Porcelain, polymer and silicone-housed station arresters for systems up to 800 kV.

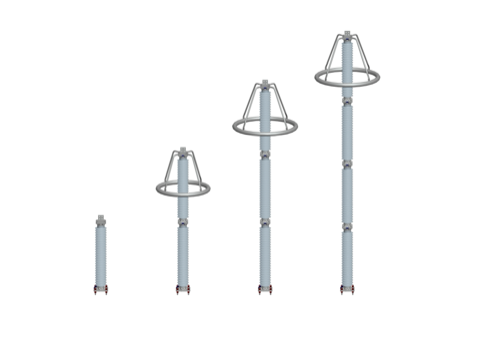

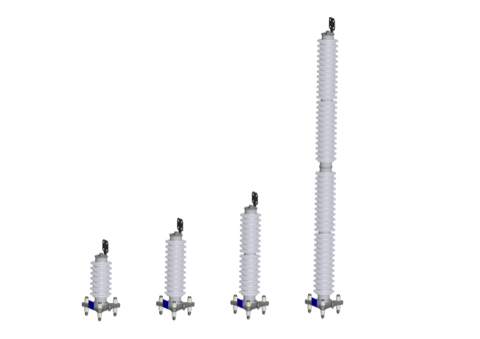

3EL13EL23EL33EL53EP323 products →
MV distribution arresters
Cage-design, plug-in and high-energy metal-oxide arresters for medium-voltage networks up to 72.5 kV.

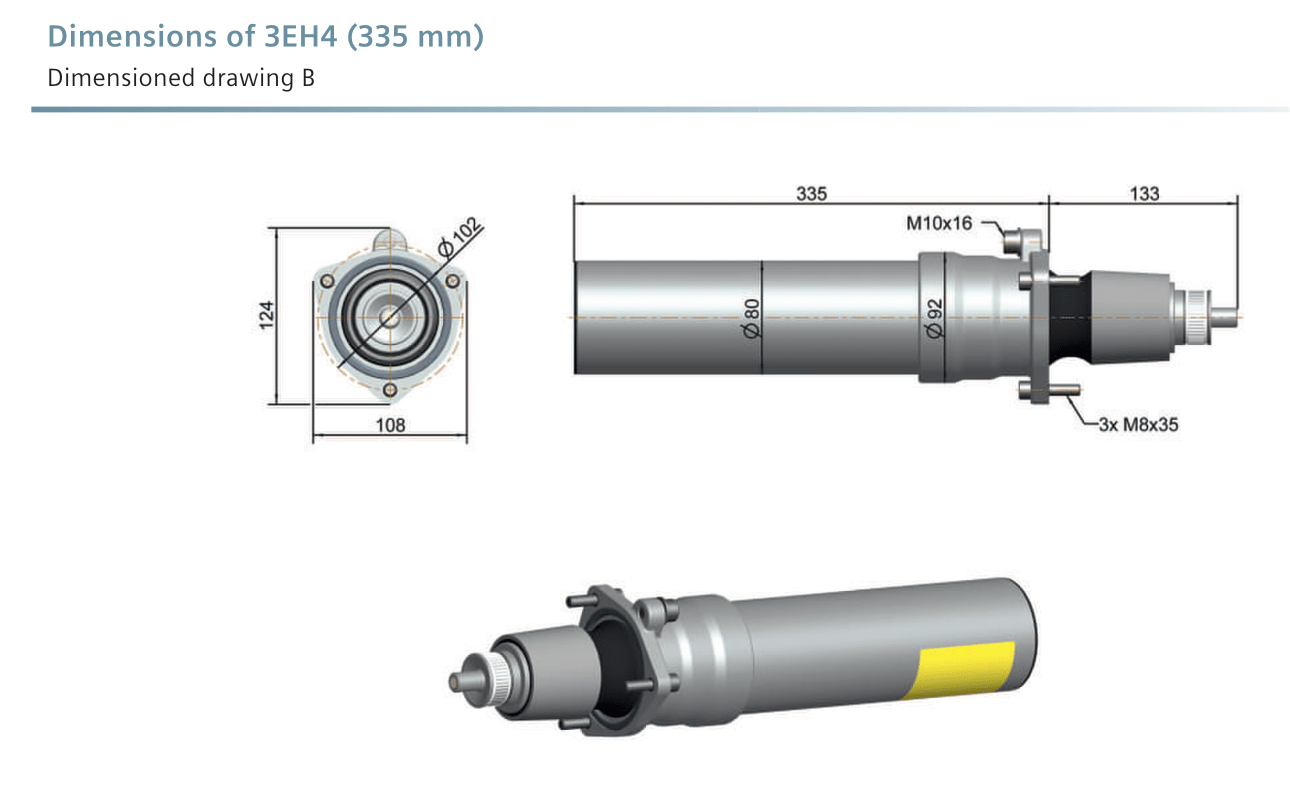

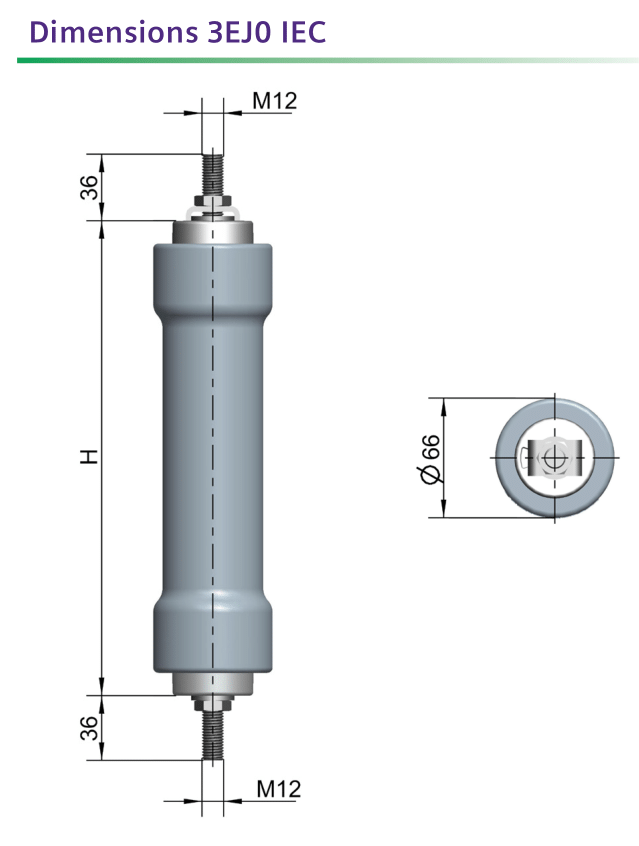

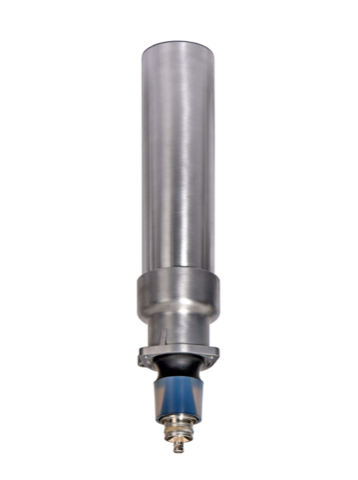

3EH23EH43EJ03EH53EJ215 products →
Line arresters (EGLA)
Externally gapped line arresters to IEC 60099-8 — series varistor units isolated by an external spark gap, zero leakage current in normal service.
3EV13EV23EV33EV43EV55 products →
Railway arresters
Metal-oxide arresters for AC and DC traction power systems — substations, overhead contact lines, and rolling stock.

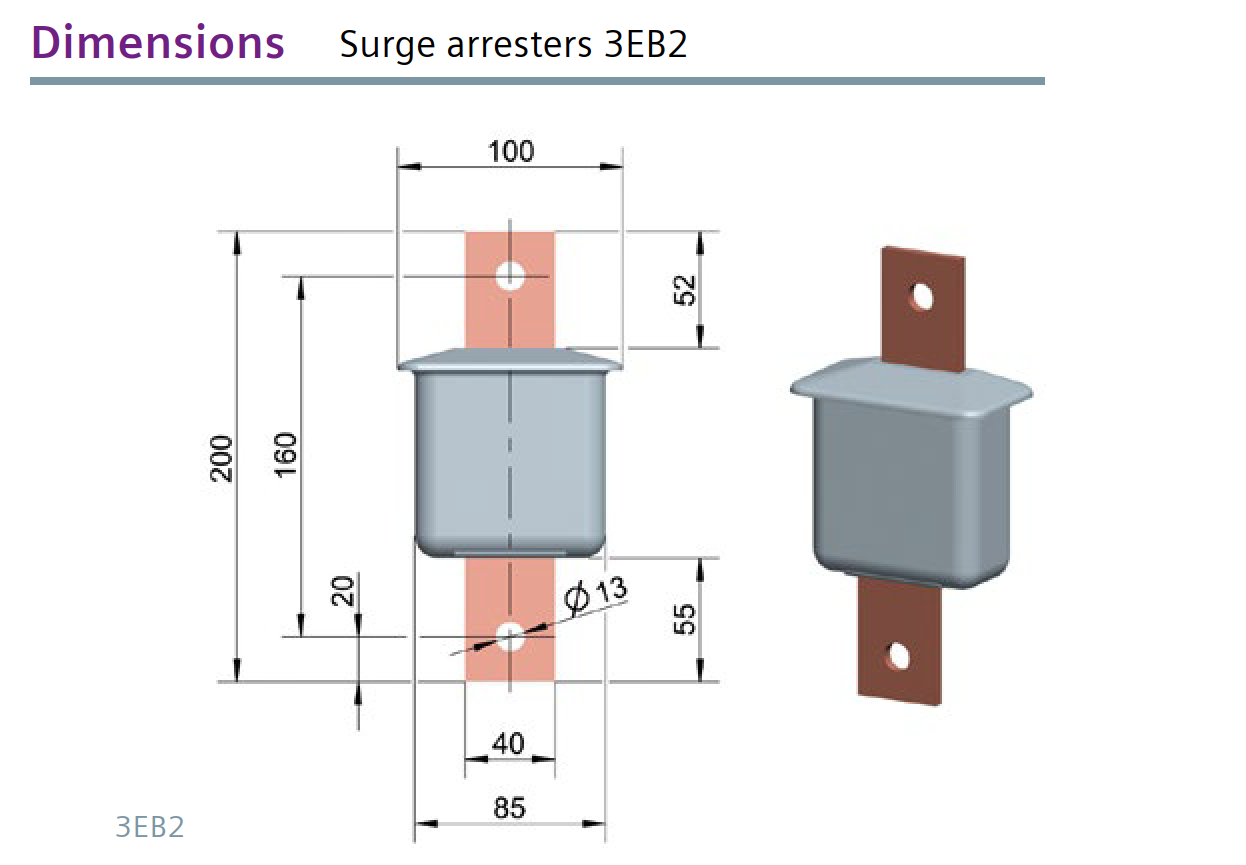

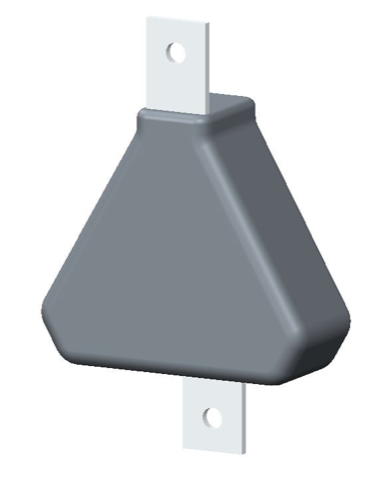

3EB13EB23EB33EB43EB56 products →
Featured products
Most-documented entries in this area — full specifications, downloads and orderable designations.

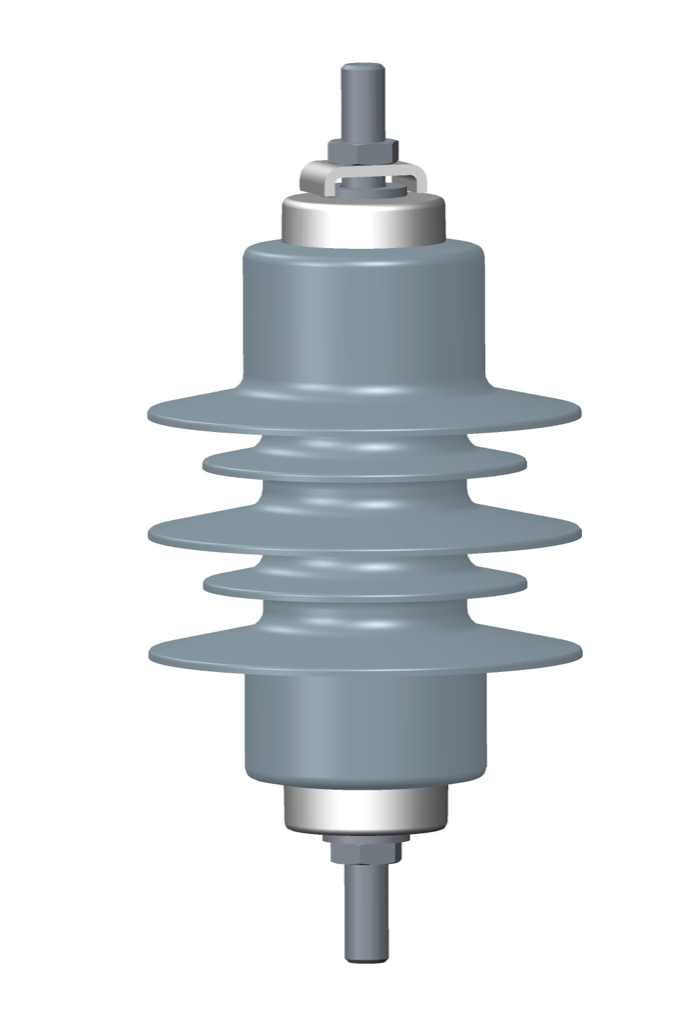

3EK7 MV Surge Arrester 3EK7, Silicone rubber, cage design, 10 kA, Ur ≤60 kV
Us ≤ 72.5 kV · In 10 kA · Silicone housing Datasheet · Dimensions ↓

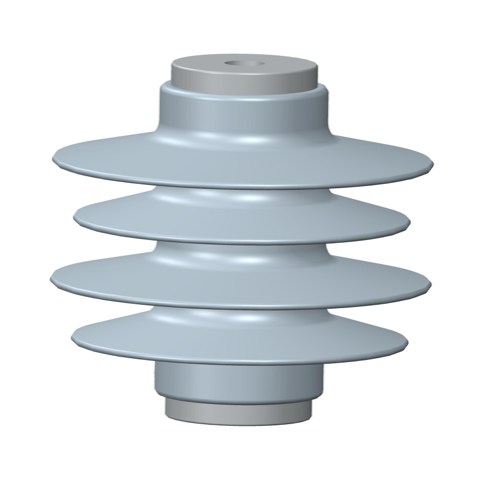

3EK8 MV Surge Arrester 3EK8, Silicone rubber, cage design, 10 kA, Ur ≤36 kV (The Allrounder)
Us ≤ 36 kV · In 10 kA · Silicone housing Datasheet · Dimensions ↓ 3EL1 HV Surge Arrester 3EL1, Silicone rubber, Cage Design, 10 kA, ≤252 kV
Us ≤ 252 kV · In 10 kA · Silicone housing Datasheet · Dimensions ↓ 3EL2 HV Surge Arrester 3EL2, Silicone rubber, Cage Design™, 10/20 kA, ≤420 kV
Us ≤ 420 kV · In 20 kA · Silicone housing Datasheet · Dimensions ↓How to choose an arrester
Start from the system: maximum system voltage Us and the neutral earthing concept set the required rated voltage Ur. The protected equipment and energy duty then select the class — line discharge class 2–5 (or charge classes per IEC 60099-4 Ed. 3) — and the site sets housing and creepage requirements.
- Station protection up to 800 kV → 3EL silicone cage design or 3EP/3EQ hollow-core
- Distribution networks and transformer protection → 3EK cage design, 3EH plug-in for switchgear
- Transmission-line lightning performance → 3EV externally gapped line arresters (IEC 60099-8)
- Traction power → 3EB railway arresters
Official brochures — current online editions
Mirrored from the published marketing literature on siemens-energy.com; source links included.
Technical documentation
38 documents available across this area — datasheets, catalogs and drawings.
Product guide Surge arresters for railway applications — full product guide (3EB2/3EB3 on pp. 12–13) Mini-catalog MiniKat 3EB2 and 3EB3 — VDV 525 application, electrical & mechanical data, dimensions Catalog Mini catalog — 3EB5 surge arresters with silicone rubber housing and Cage Design (description, dimensions, terminal and mounting drawings) Datasheet 3EB5 technical data — electrical and mechanical characteristics, all 18 AC/DC typesOwn or operate this equipment?
Related services: how to obtain spare parts · maintenance & repairs. Registered customers see their installed base, quotations and spare-part workflows next to these same product pages.
