3EB1
Railway Surge Arrester 3EB1, AC railway traction power systems, 15–25 kV silicone housing
3EB1
- Metal-oxide surge arrester for railway traction power systems
- Housing: silicone · line discharge class 2
- Tested to IEC 60099-4
Sign in to see your price, availability and framework terms for 3EB1.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EB1
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EB1 covers up to 25 kV of the railway arresters range (≤ 25 kV across the category, √ scale).
Specifications
Main
| Product family | 3EB1 |
| Product type | Metal-oxide surge arrester |
| Application | Railway traction power systems |
Electrical
| Max. system voltage Us | 25 kV |
| Max. rated voltage Ur | 36 kV |
| Min. system voltage | 15 kV |
| Nominal discharge current In | 10 kA |
| Short-circuit rating Isc | 20 kA |
| Line discharge class | 2 |
Mechanical / environment
| Housing material | silicone |
| Design | Silicone-rubber cage design |
Standards & certifications
| Standards | IEC 60099-4 |
Documents & downloads
Datasheet Technical datasheet 3EB1
Brochure Family brochure

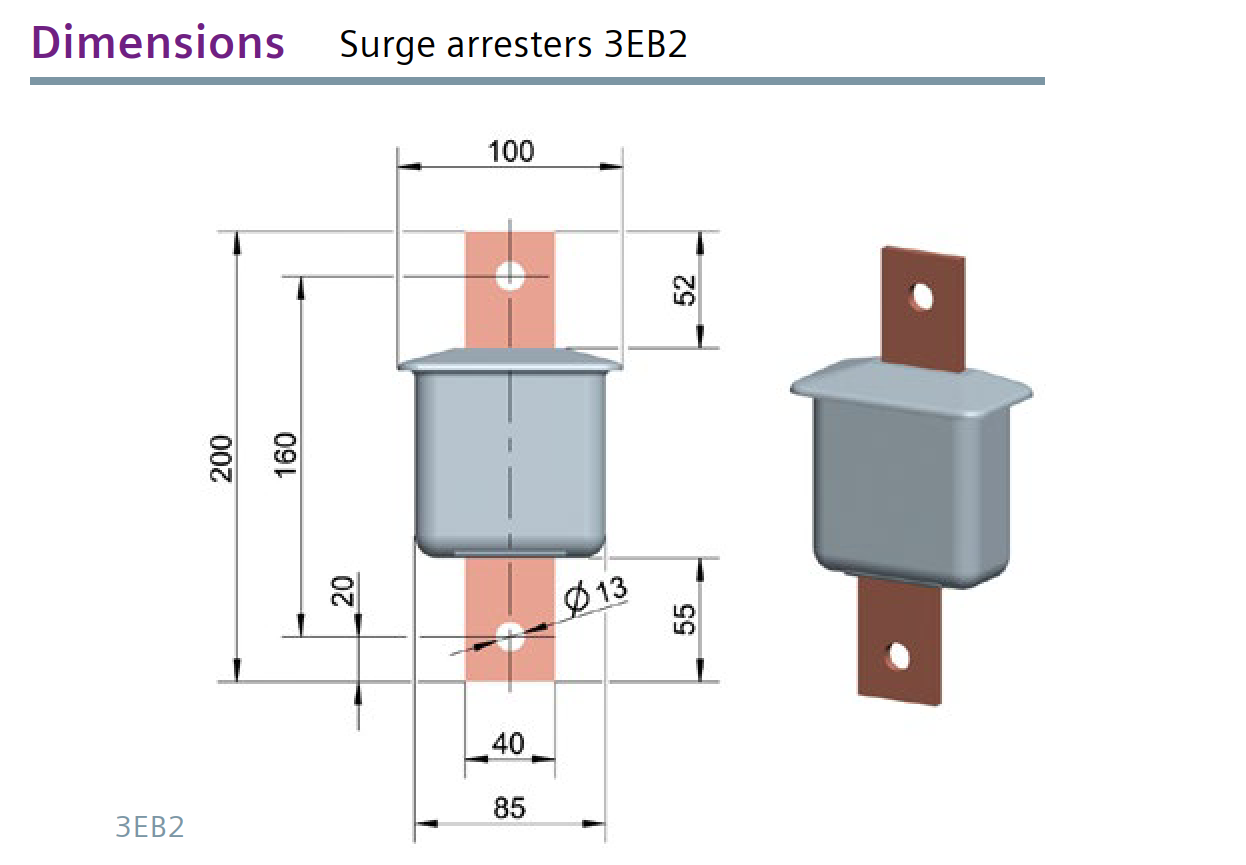

Dimensions Dimension drawing
Downloads served from the DAM (Aprimo) via the CMS in production.
Also covered in the technical library
Brochure Our portfolio of surge arresters & composite insulators — Siemens Energy
Catalog Surge arresters for railway applications — Product guide
Related products
3EB2 Railway Surge Arrester 3EB2, DC railway traction (≤3.6 kV) + AC low-voltage, silicone
Us ≤ 3.6 kV · In 10 kA · Silicone housing Datasheet · Dimensions ↓
3EB3 Railway Surge Arrester 3EB3, DC traction 750 V–3 kV, class DC-C, VDV 525 "A1", silicone housing
DC systems up to 3 kV · In 20 kA · Qrs 7.5 As · Wth up to 104 kJ Datasheet · Dimensions ↓
3EB4 Railway Surge Arrester 3EB4, DC railway traction, high-energy heavy-duty, silicone
Us ≤ 3.6 kV · In 20 kA · Silicone housing Datasheet · Dimensions ↓
