3EK7
MV Surge Arrester 3EK7, Silicone rubber, cage design, 10 kA, Ur ≤60 kV
3EK7
- Metal-oxide surge arrester in silicone-rubber cage design for medium-voltage distribution networks, rated voltages 3–60 kV
- Silicone rubber direct-molded onto MOVs and FRP cage rods — void-free sealing against moisture, no sealed shell so overload arcs escape without pressure build-up or ejection of internal parts
- In 10 kA, rated short-circuit current Is 20 kA, high-current impulse 100 kA; very high mechanical performance (SSL up to 2,940 N)
- IEC 60099-4 versions with DH (Qrs 0.5 C) or SL (Qrs 1.2 C) designation, plus IEEE C62.11 energy class B; indoor shedless variants available
- Hydrophobic, self-extinguishing housing for maintenance-free service; protects transformers, circuit breakers, MV switchgear and distribution lines
Transformer protectionMV switchgear and panel protectionCircuit breaker protectionOverhead distribution line protection
Sign in to see your price, availability and framework terms for 3EK7.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EK7
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EK7 covers up to 72.5 kV of the mv distribution arresters range (≤ 72.5 kV across the category, √ scale).
Specifications
Main
| Product family | 3EK7 |
| Product type | Metal-oxide surge arrester |
| Application | Medium-voltage distribution networks |
| Protected equipment | Transformers, circuit breakers, MV switchgear/panels, distribution lines |
Electrical
| Max. system voltage Us | 72.5 kV |
| Max. rated voltage Ur | 60 kV |
| Min. system voltage | 3.6 kV |
| Continuous operating voltage Uc | 2.4–48 kV (0.8 × Ur) |
| Nominal discharge current In | 10 kA |
| Short-circuit rating Isc | 20 kA |
| High-current impulse | 100 kA |
| Line discharge class | 2 |
Energy handling (IEC 60099-4 / IEEE C62.11)
| DH designation (order code 4) | Charge transfer rating Qrs 0.5 C, thermal charge transfer rating Qth 1.1 C |
| SL designation (order code 5) | Charge transfer rating Qrs 1.2 C, thermal energy rating Wth 4.5 kJ/kVr |
| IEEE C62.11 energy class | B — classifying current 10 kA, single-impulse withstand 0.6 C (outdoor), switching-surge energy rating 4.5 kJ/kVMCOV |
Protection levels (residual voltage, 8/20 µs 10 kA)
| 3EK7 120-4CC4 (Ur 12 kV) | 31.8 kV (20 kA: 36.6 kV; 30/60 µs 500 A: 24.5 kV) |
| 3EK7 360-4CH4 (Ur 36 kV) | 95.4 kV (20 kA: 110 kV; 30/60 µs 500 A: 73.5 kV) |
| 3EK7 600-4CJ4 (Ur 60 kV) | 159 kV (20 kA: 183 kV; 30/60 µs 500 A: 122 kV) |
Mechanical / environment
| Housing material | silicone |
| Design | Silicone-rubber cage design — MOVs in fiber-reinforced plastic (FRP) rod cage, silicone direct-molded, no internal gas volume |

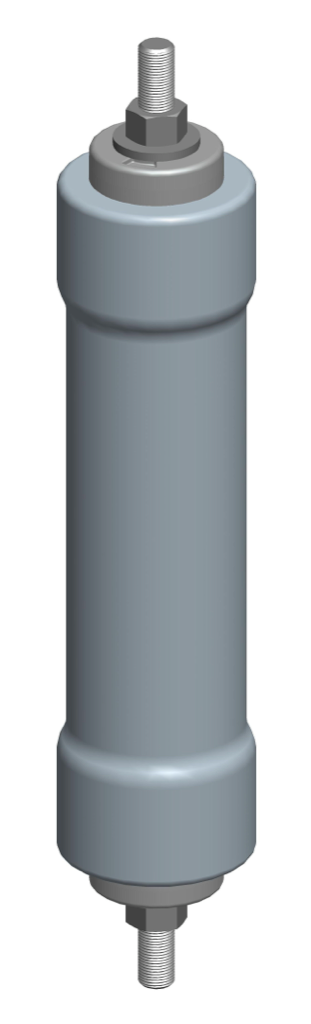

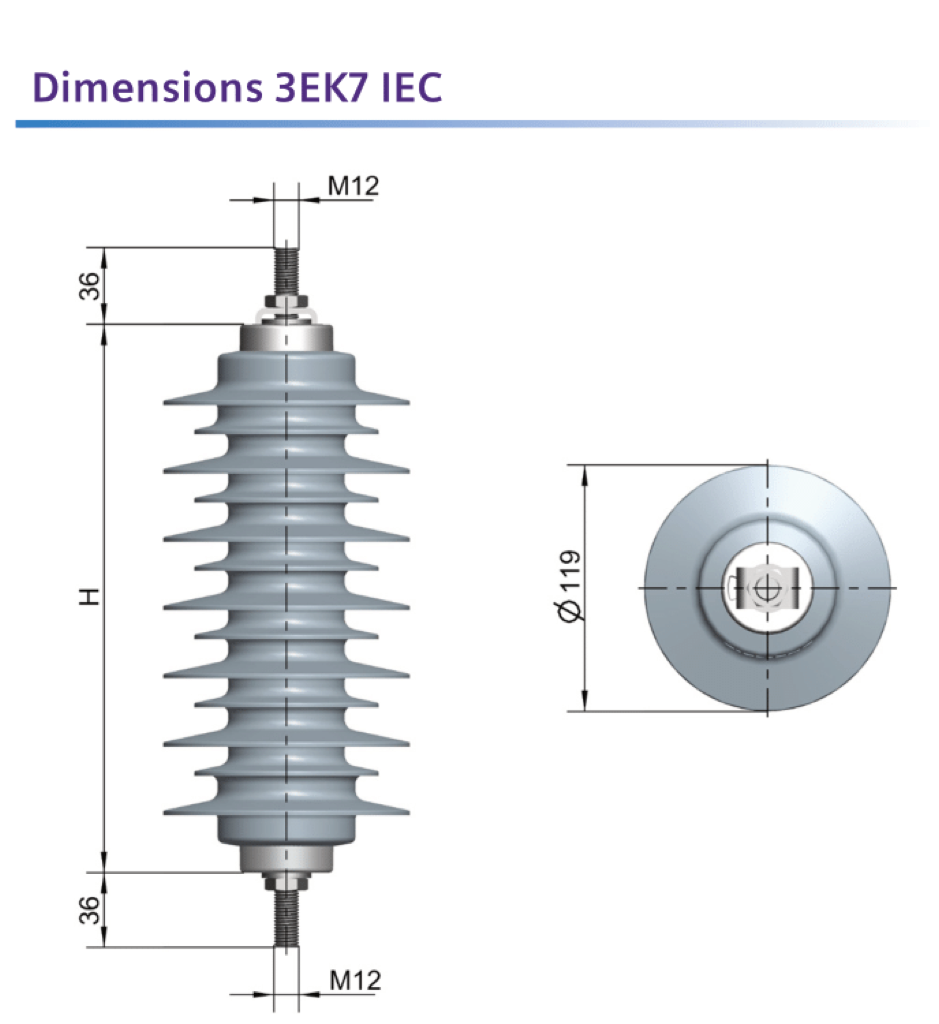

| Housing heights | 170–510 mm (types B–K), outdoor with alternating sheds; indoor version shedless 170–510 mm |
| Creepage distance | 372–1,595 mm (outdoor IEC versions) |
| Specified short-term load SSL | 2,940 N (housing B) down to 980 N (housing K); with insulating bracket 470–150 N |
| Specified long-term load SLL | 2,050 N (housing B) down to 680 N (housing K); with insulating bracket 320–100 N |
| Weight | approx. 1.5–5.4 kg (outdoor, without accessories) |
| Housing properties | Hydrophobic, tracking/erosion resistant, self-extinguishing, flame-retardant |

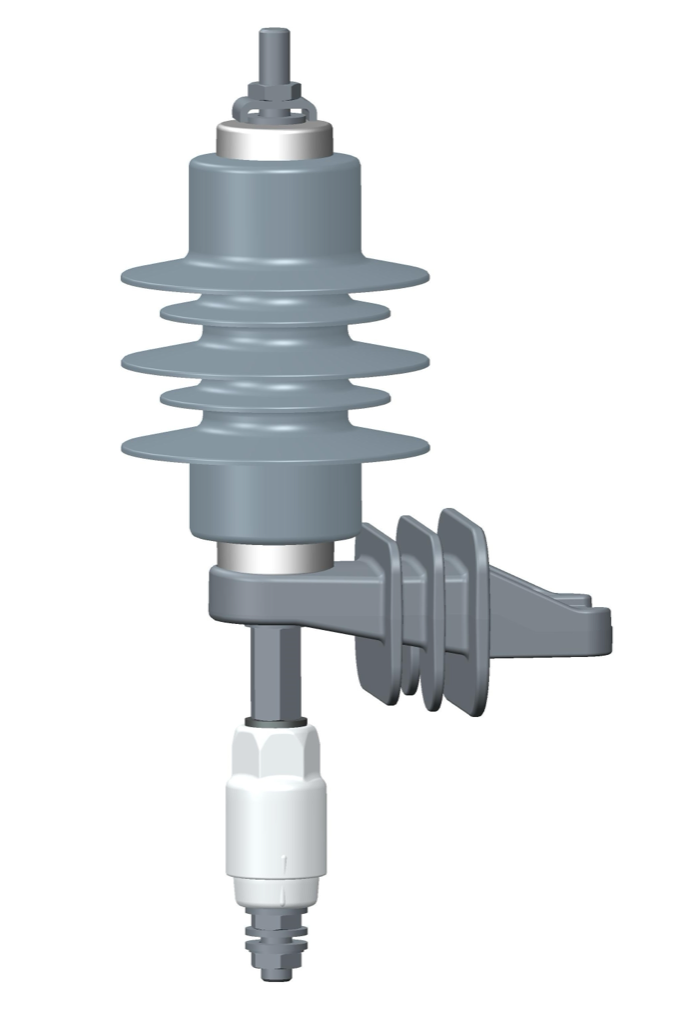

| Disconnector option | Earth-terminal disconnector available for distribution systems, non-pyrotechnic (spare part 3EX4 065-7A for 3/8″ thread, 3EX4 065-7C for M12) |
Standards & certifications
| Standards | IEC 60099-4, IEEE C62.11 |
| Withstand (example, housing B outdoor) | LIWV 1.2/50 µs 104 kV, power-frequency wet 1 min 49 kV |
Options & variants
Representative catalog ratings (MV Surge Arrester Catalog LS 2026-01-30, pp. 18–25). Order code: 3EK7 <Ur×10> – <4=DH 0.5 C | 5=SL 1.2 C | 3=IEEE heavy duty> <C=IEC | A=IEEE> <housing B–K> <4=alternating sheds | 0=shedless indoor>. Top-ordered SAP material 3EK71003AB4 ("10 kV Heavy Duty") = the IEEE 10 kV duty-cycle / MCOV 8.4 kV row below.
| Order No. | Standard / designation | Ur (kV) | Uc / MCOV (kV) | In (kA) | Housing H (mm) | Creepage (mm) |
|---|---|---|---|---|---|---|
| 3EK7 100-3AB4 | IEEE C62.11 · class B heavy duty | 10 (duty cycle) | 8.4 | 10 | 170 (6.7 in) | 371 (14.6 in) |
| 3EK7 120-4CC4 | IEC 60099-4 · DH | 12 | 9.6 | 10 | 200 | 485 |
| 3EK7 240-4CE4 | IEC 60099-4 · DH | 24 | 19.2 | 10 | 270 | 775 |
| 3EK7 360-4CH4 | IEC 60099-4 · DH | 36 | 28.8 | 10 | 400 | 1230 |
| 3EK7 600-4CJ4 | IEC 60099-4 · DH | 60 | 48.0 | 10 | 470 | 1420 |
| 3EK7 360-5CJ4 | IEC 60099-4 · SL | 36 | 28.8 | 10 | 470 | 1420 |
| 3EK7 360-4CH0 | IEC 60099-4 · DH indoor (shedless) | 36 | 28.8 | 10 | 400 | 387 |
Compatible accessories
Line terminals
Line clamp, ø8–18 mm
3EX4 063-0C
Line terminals
L-bracket
3EX4 063-1C
Line terminals
Line clamp, stainless steel
3EX4 063-2C
Line terminals
Line clamp for cable shoe
3EX4 063-5C
Line terminals
Line clamp for cable shoe (NEMA)
3EX4 063-5A
Protection
Bird protection cap
3EX4 128-0A
Protection
Bird protection cap XL
3EX4 128-4A
Brackets
Metal bracket (NEMA)
3EX4 080-1A
Brackets
Metal bracket (DIN)
3EX4 080-2A
Brackets
Insulating bracket (NEMA)
3EX4 080-1C
Brackets
Insulating bracket (DIN)
3EX4 080-2C
Transformer brackets
Transformer bracket, size 1
Transformer brackets
Transformer bracket, size 2
Transformer brackets
Transformer bracket, size 3
Transformer brackets
Transformer bracket, size 4
Pole mounting
Cross-arm bracket
Leads
Lead wire, insulated
Leads
Earth lead, flexible
Leads
Earth lead, rigid
Documents & downloads
Catalog Medium-Voltage Surge Arresters Catalog (3EK section pp. 16–29)
Mini-catalog MiniKat 3EK7 IEC — selection & dimensions
Mini-catalog MiniKat 3EK7 IEC SL — selection & dimensions
Also covered in the technical library
Catalog Medium-Voltage Surge Arresters — Product Catalogue
Catalog Medium-voltage surge arresters — Siemens Energy catalog (online edition)
Brochure Our portfolio of surge arresters & composite insulators — Siemens Energy
Ordered designations
Representative orderable type designations of this family — searchable via the catalog search.
