3EK8

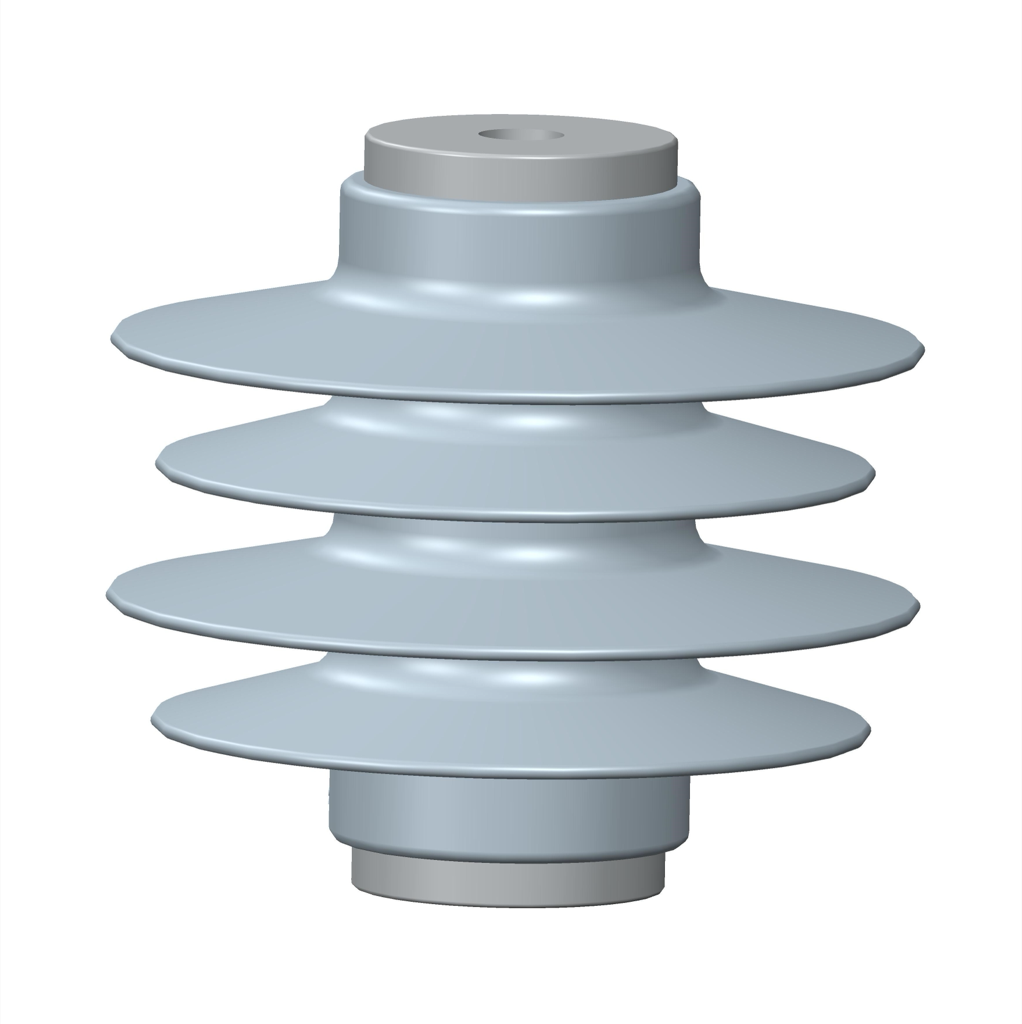

MV Surge Arrester 3EK8, Silicone rubber, cage design, 10 kA, Ur ≤36 kV (The Allrounder)
3EK8
- Metal-oxide surge arrester for medium-voltage distribution networks — protects transformers, circuit breakers, MV switchgear and distribution lines
- Cage design: silicone rubber directly molded onto the MOV column and FRP-rod cage — void-free sealing, no moisture ingress, safe overload behavior without a sealed pressure shell
- Housing: silicone, alternating sheds · hydrophobic, tracking/erosion resistant, self-extinguishing · line discharge class 2
- Energy handling per IEC 60099-4 Ed. 3: charge transfer rating Qrs 0.4 C, thermal charge transfer rating Qth 1.1 C · 20 kA short-circuit rated

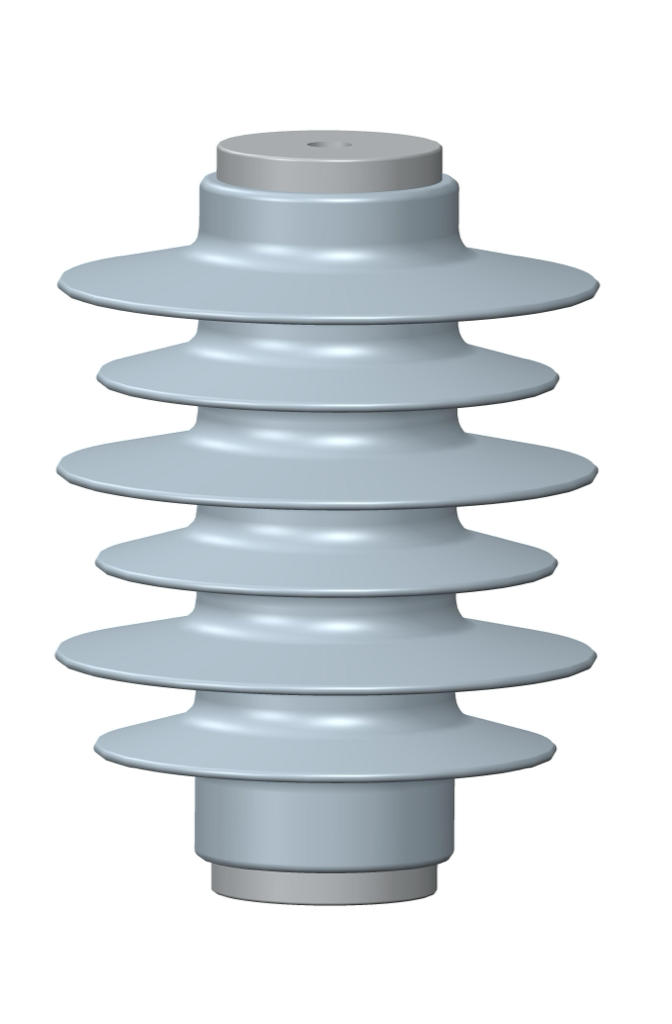

- Tested to IEC 60099-4 and IEEE C62.11 — available as IEC (1C), IEEE heavy duty (3A HD) and IEEE riser pole (4A RP) versions
Distribution transformer protectionMV switchgear and panel protectionOverhead distribution line protectionCable riser pole protectionCircuit breaker protection
Sign in to see your price, availability and framework terms for 3EK8.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EK8
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EK8 covers up to 36 kV of the mv distribution arresters range (≤ 72.5 kV across the category, √ scale).
Specifications
Main
| Product family | 3EK8 |
| Product type | Metal-oxide surge arrester |
| Application | Medium-voltage distribution networks |
| Protected equipment | Transformers, circuit breakers, MV switchgear/panels, distribution lines |
| Versions | IEC 60099-4 (1C), IEEE C62.11 heavy duty (3A, HD), IEEE C62.11 riser pole (4A, RP) |
Electrical
| Max. system voltage Us | 36 kV |
| Max. rated voltage Ur | 36 kV |
| Min. system voltage | 3.6 kV |
| Nominal discharge current In | 10 kA |
| Short-circuit rating Isc | 20 kA |
| Line discharge class | 2 |
| Charge transfer rating Qrs (IEC 60099-4 Ed. 3) | 0.4 C |
| Thermal charge transfer rating Qth (IEC 60099-4 Ed. 3) | 1.1 C |
| Residual voltage at 10 kA, 8/20 µs (examples) | 31.8 kV (Ur 12 kV) · 63.6 kV (Ur 24 kV) · 95.4 kV (Ur 36 kV) |
| Residual voltage at 20 kA, 8/20 µs (Ur 36 kV) | 107 kV |
IEEE versions (3EK8 HD / RP)
| Energy class | A (per 3EK8 HD table) |
| Switching surge energy rating | 3.0 kJ/kV MCOV |
| Lightning impulse classifying current | 10 kA |
| Duty-cycle voltage range | 3–36 kV, MCOV 2.55–29.0 kV (HD) · 3–27 kV, MCOV 2.55–22.0 kV (RP) |
Mechanical / environment
| Housing material | silicone |
| Design | Silicone-rubber cage design |
| Sheds | Alternating sheds; silicone directly molded onto MOVs and FRP-rod cage (void- and gap-free sealing) |
| Housing properties | Hydrophobic, high tracking/erosion resistance, self-extinguishing, flame-retardant |

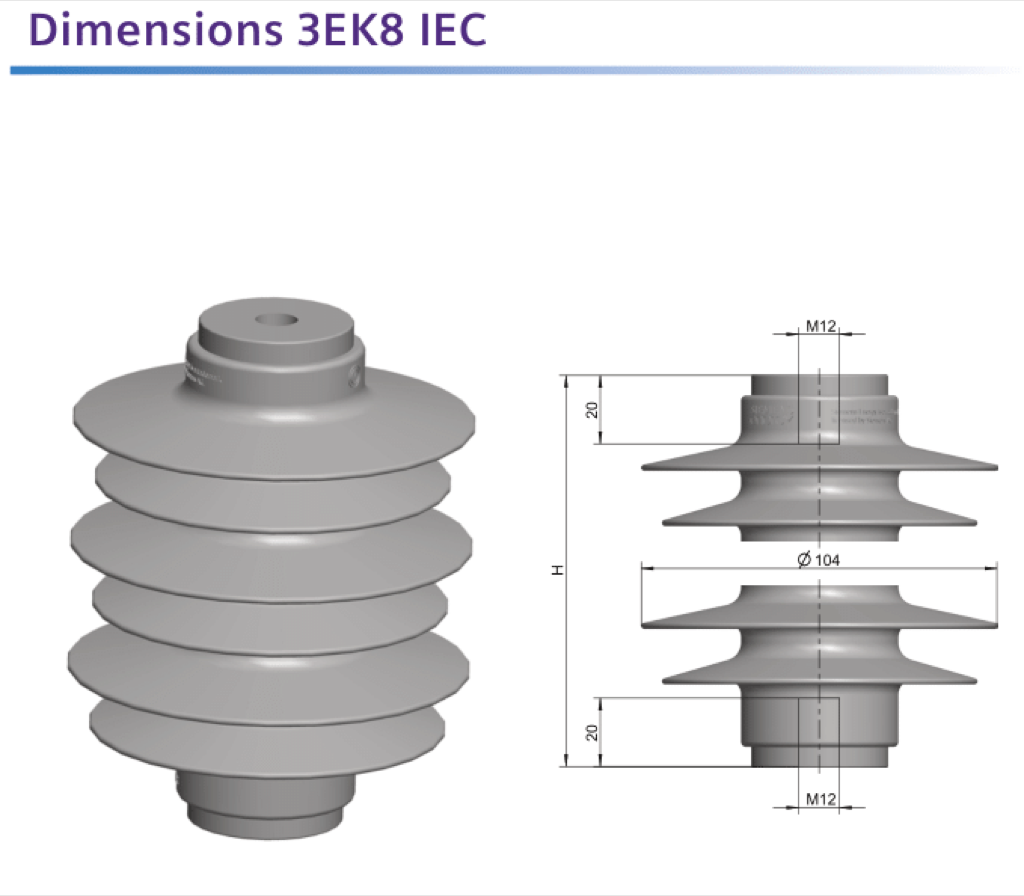

| Height (IEC versions) | 97–390 mm |
| Creepage distance (IEC versions) | 267–1,358 mm (per housing size P…X) |
| Flashover distance (IEC versions) | 109–402 mm |
| Housing insulation withstand | 63–233 kV lightning impulse 1.2/50 µs · 29–108 kV power frequency, 1 min wet |
| Specified short-term load SSL (arrester only) | 510–2,060 N |
| Specified long-term load SLL (arrester only) | 350–1,440 N |
| Weight (without accessories) | approx. 0.5–2.8 kg |
Standards & certifications
| Standards | IEC 60099-4, IEEE C62.11 |
| IEC designation | DH (distribution, high duty) |
Options & variants

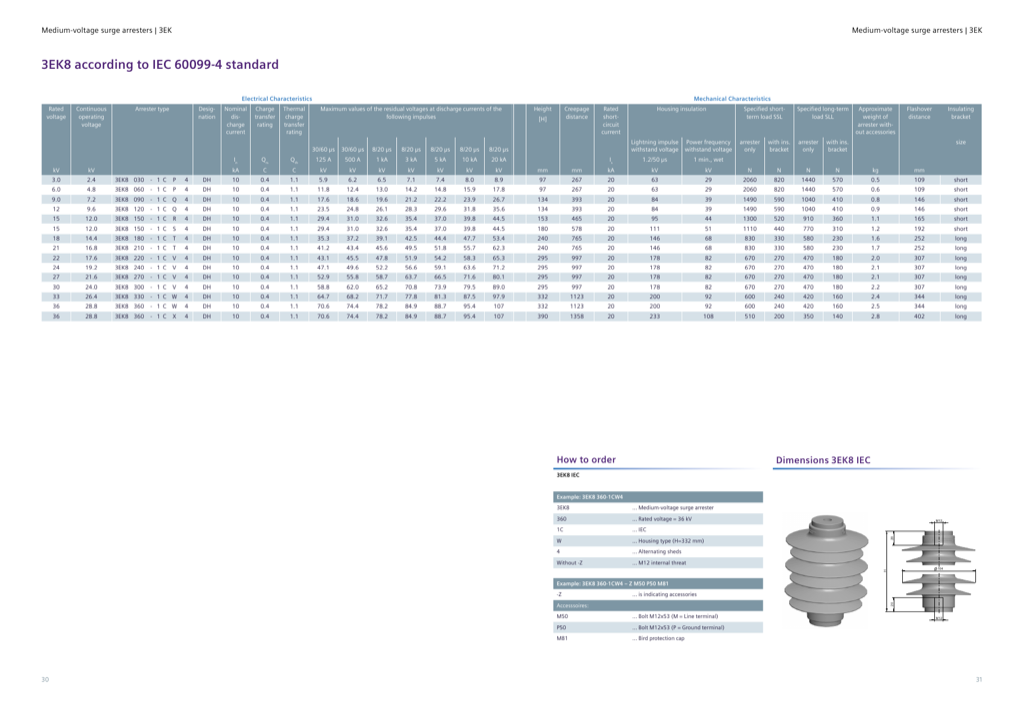

Representative ratings from the 3EK8 IEC and 3EK8 HD IEEE tables, MV Surge Arrester Catalogue 01/2026 (catalog pp. 30–33). The two top-ordered SAP materials — 3EK81003CA4 (227 order lines) and 3EK82703GA4 'Surge Arrester, 27/22' (74 lines) — correspond to the 10 kV and 27 kV duty-cycle / 22 kV MCOV IEEE heavy-duty ratings shown in the last two rows (SAP compacts the MLFB letter order slightly differently than the catalog print).
| Order no. | Standard | Ur / duty-cycle voltage (kV) | Uc / MCOV (kV) | Residual voltage @ 10 kA 8/20 µs (kV) | Height | Creepage / leakage distance |
|---|---|---|---|---|---|---|
| 3EK8 030-1CP4 | IEC 60099-4 | 3.0 | 2.4 | 8.0 | 97 mm | 267 mm |
| 3EK8 090-1CQ4 | IEC 60099-4 | 9.0 | 7.2 | 23.9 | 134 mm | 393 mm |
| 3EK8 120-1CQ4 | IEC 60099-4 | 12 | 9.6 | 31.8 | 134 mm | 393 mm |
| 3EK8 180-1CT4 | IEC 60099-4 | 18 | 14.4 | 47.7 | 240 mm | 765 mm |
| 3EK8 240-1CV4 | IEC 60099-4 | 24 | 19.2 | 63.6 | 295 mm | 997 mm |
| 3EK8 360-1CW4 | IEC 60099-4 | 36 | 28.8 | 95.4 | 332 mm | 1,123 mm |
| 3EK8 100-3AC4 | IEEE C62.11 HD | 10 | 8.40 | 30.0 | 5.2 in | 13.0 in |
| 3EK8 270-3AG4 | IEEE C62.11 HD | 27 | 22.0 | 81.0 | 10.2 in | 28.7 in |
