8DN9

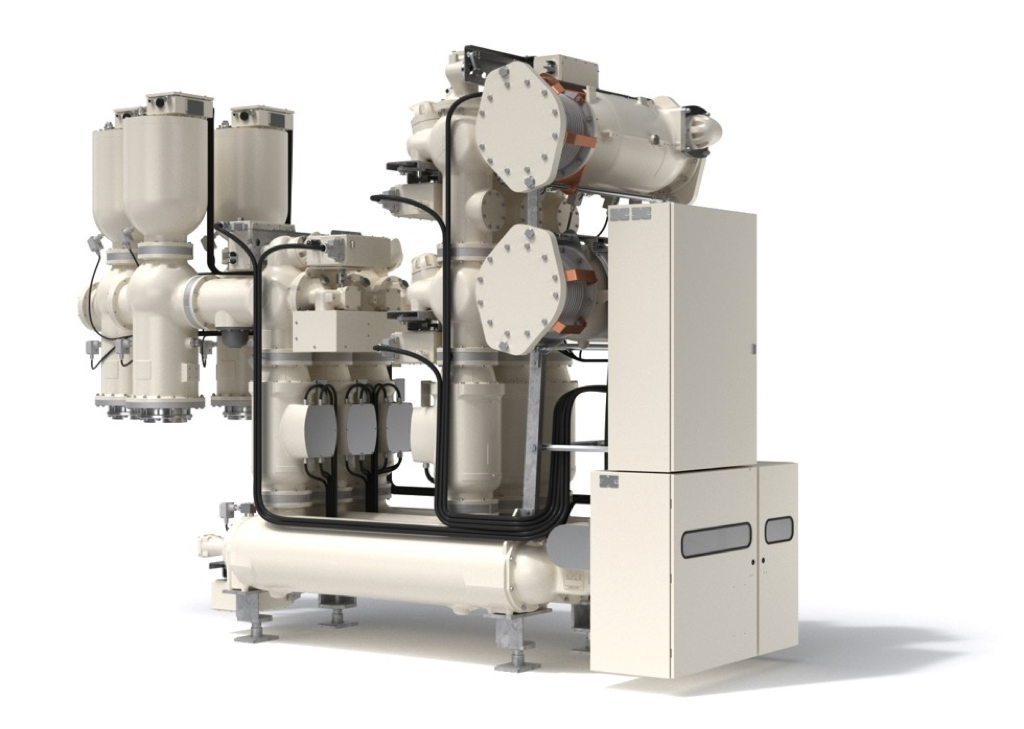

Gas-insulated switchgear 8DN9, up to 245 kV, 50 kA, 4000 A, SF6, indoor
8DN9
- Proven 8D series platform: introduced 1968, more than 24,000 bays installed and well over 285,000 bay-years of recorded operation
- Onshore system voltages up to 245 kV; offshore applications up to 300 kV available
- SF6 insulation with self-compression interrupter and stored-energy spring drive mechanism
- Low life-cycle cost: type-tested leakage rate below 0.1 % per year and gas compartment, first major inspection after more than 25 years, expected lifetime beyond 50 years
- Compact indoor design with 1,500 mm bay width and safe encapsulation
Transmission substationsOffshore substations up to 300 kVCompact indoor substations
Sign in to see your price, availability and framework terms for 8DN9.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 8DN9
15 minutes with the right switchgear specialist — question in, booked call out. No email archaeology.
Checking availability…
8DN9 covers up to 245 kV of the gas-insulated switchgear range (≤ 550 kV across the category, √ scale).
Specifications
Main
| Product family | 8DN9 (Siemens Energy 8D GIS series) |
| Design | Gas-insulated, metal-enclosed switchgear (GIS) |
| Application | Transmission substations, onshore up to 245 kV; offshore up to 300 kV |
| Insulation medium | SF6 |
| Interrupter technology | Self-compression principle |
| Circuit-breaker drive | Stored-energy spring mechanism |
| Rated operating sequence | O-0.3 s-CO-3 min-CO / CO-15 s-CO |
| Installation | Indoor |
Electrical
| Rated voltage | up to 245 kV (offshore applications up to 300 kV) |
| Rated frequency | 50 / 60 Hz |
| Rated short-duration power-frequency withstand voltage (1 min) | up to 460 kV |
| Rated lightning impulse withstand voltage (1.2/50 us) | up to 1,050 kV |
| Rated normal current, busbar / feeder | up to 4,000 A / 4,000 A |
| Rated short-circuit breaking current (< 3 cycles) | up to 50 kA |
| Rated peak withstand current | up to 135 kA |
| Rated short-time withstand current (up to 3 s) | up to 50 kA |
Mechanical / environment
| Bay width | 1,500 mm |
| Bay height x depth (depending on bay arrangement) | 3,700 mm x 5,100 mm |
| Bay weight | 7.5 t |
| Ambient temperature range | -25 C to +55 C |
| Rated supply voltage | 110 - 250 V DC |
| Leakage rate per year and gas compartment (type-tested) | < 0.1 % |
| First major inspection | > 25 years |
| Expected lifetime | > 50 years |
Standards & certifications
| Product standards | IEC / IEEE / GOST (per manufacturer datasheet) |
| GIS assemblies | IEC 62271-203 (high-voltage gas-insulated metal-enclosed switchgear; standard attribution from public engineering knowledge, not stated on the datasheet) |
| Type testing | Circuit breakers completely type-tested in accordance with latest IEC / ANSI standards before market launch (per manufacturer GIS brochure) |
| Test laboratory | Lead factory Berlin lab accredited per IEC 17025; PEHLA network and STL member lab |
Documents & downloads

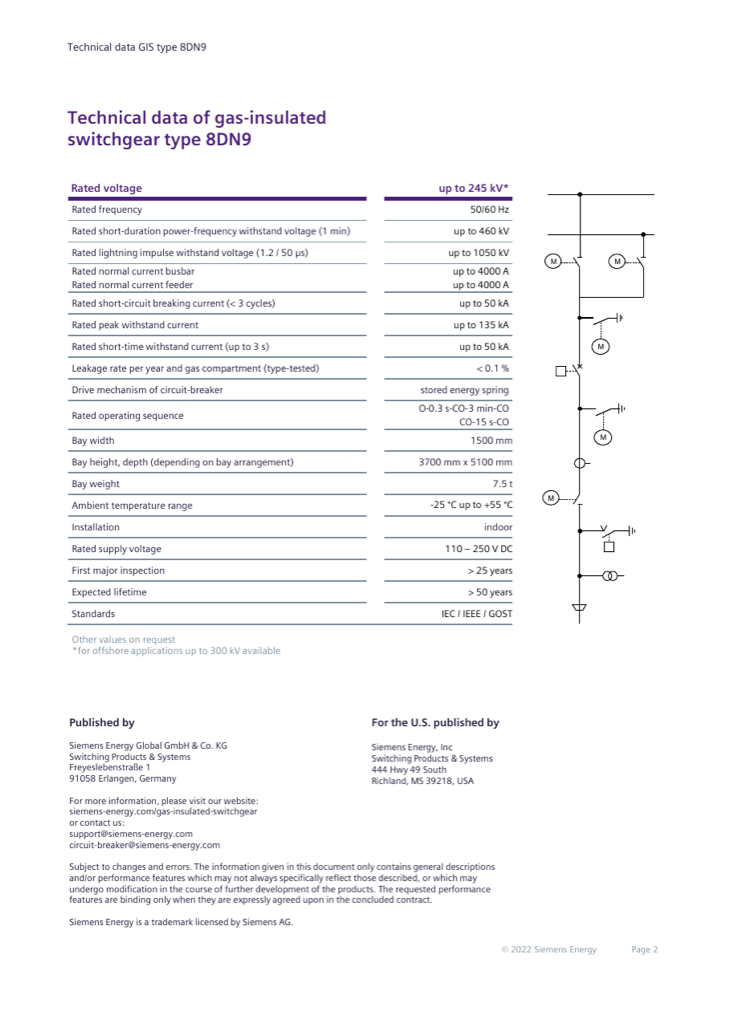

Datasheet Gas-insulated switchgear type 8DN9 — Technical data (2022)
Catalog Gas-insulated switchgear from 72.5 kV up to 550 kV — portfolio overview (current online edition)
Datasheet 8DN9 Technical datasheet 2021 (Chinese)
Presentation 8DN9 up to 245 kV — product presentation
