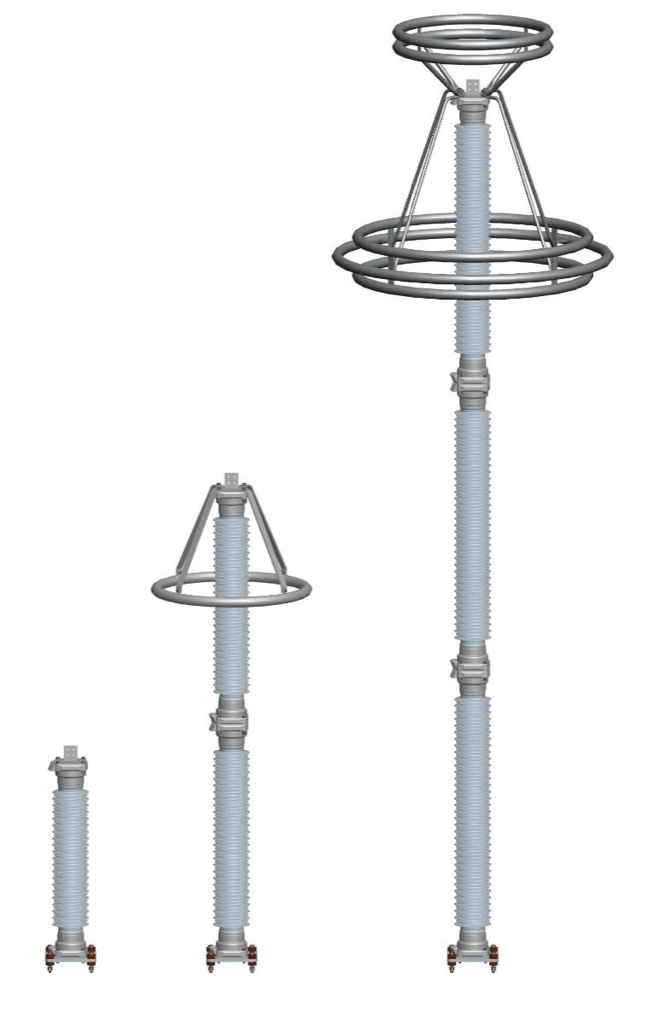

3EQ4
HV Surge Arrester 3EQ4, Polymer hollow core (silicone composite), 10/20 kA, ≤550 kV
3EQ4
- Metal-oxide surge arrester with composite hollow-core design for high-voltage systems
- Silicone-rubber hollow-core housing — hydrophobic, self-extinguishing (IEC 60707 / UL94 V-0), for coastal and heavily polluted sites
- Line discharge class 3/4/5 · energy absorption 8–16 kJ/kV · long-duration current impulse 1100–3200 A
- Rated short-circuit current 65 kA (80 kA available on request), high current impulse withstand 100 kA (4/10 µs)
- Type-tested to IEC 60099-4 — protects transformers, circuit breakers, generators, motors, capacitors, bushings and switchgear
Transformer protectionCircuit breaker protectionGenerator and motor protectionCapacitor bank protectionSwitchgear and bushing protection
Sign in to see your price, availability and framework terms for 3EQ4.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EQ4
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EQ4 covers up to 550 kV of the hv station arresters range (≤ 800 kV across the category, √ scale).
Specifications
Main
| Product family | 3EQ4 |
| Product type | Metal-oxide surge arrester |
| Application | High-voltage systems |
| Protection of | Circuit breakers, transformers, generators, motors, capacitors, bushings, switchgear |
| Versions | Phase surge arrester (…2P…) and neutral-point surge arrester (…2S/3S…); upright or suspended mounting |
Electrical
| Max. system voltage Us | 550 kV |
| Max. rated voltage Ur | 468 kV |
| Min. system voltage | 123 kV |
| Nominal discharge current In | 20 kA |
| Short-circuit rating Isc | 65 kA |
| Line discharge class | 3/4/5 |
| Short-circuit rating, option | 80 kA on request (e.g. 3EQ4 336-2PN36 …K80 datasheet: Is = 80 kA) |
| High current impulse withstand (4/10 µs) | 100 kA |
| Long-duration current impulse (2 ms) | 1100 A (class 3) / 1600 A (class 4) / 2000–3200 A (class 5) |
| Rated frequency | 48 … 62 Hz |
Energy handling (IEC 60099-4)
| Energy absorption capability Eth | 8.0 / 10.0 / 14.0 / 16.0 kJ/kV (LD class 3 / 4 / 5 / 5) |
| Single-impulse charge transfer Qrs (example, Ur 336 kV) | 2 C |
| Thermal energy rating Wth (example, Ur 336 kV) | 7 kJ/kV |
| Temporary overvoltage (example, Ur 336 kV) | 376 kV for 1 s / 353 kV for 10 s |
Residual voltage (catalog examples, 8/20 µs)
| Ur 192 kV @ 10 kA | 461 kV (LD class 3) |
| Ur 336 kV @ 10 kA | 806 kV (LD class 3; 1016 kV @ 40 kA) |
| Ur 444 kV @ 20 kA | 1031 kV (LD class 5, 3200 A) |
Mechanical / environment
| Housing material | polymer |
| Design | Polymer hollow-core housing |
| Sheds / color | Alternating sheds, gray silicone rubber |

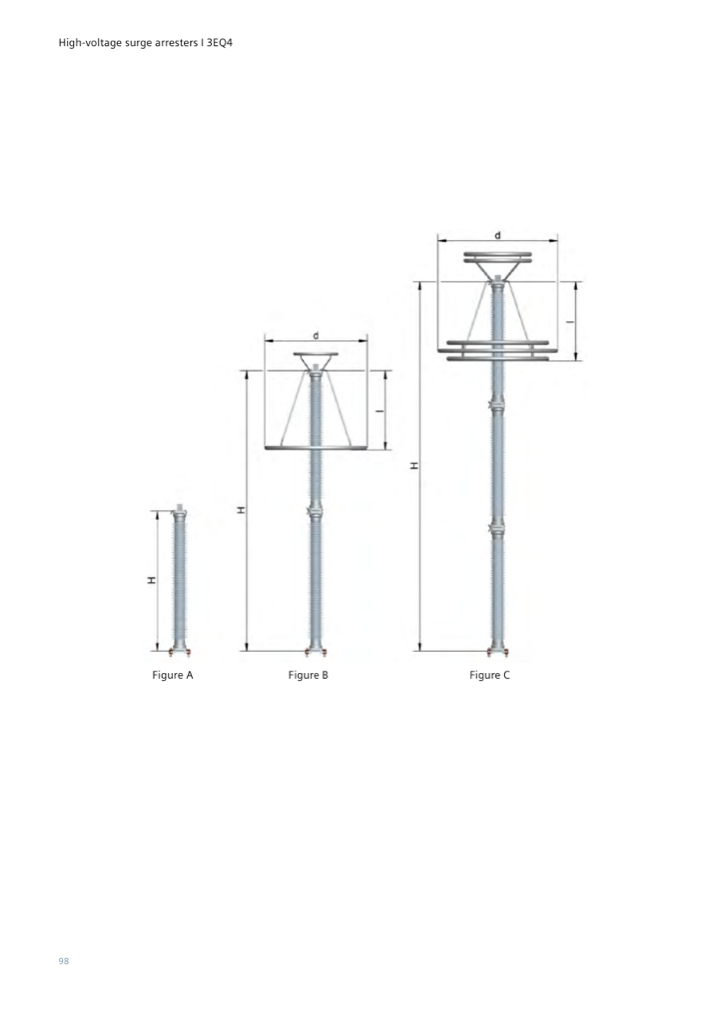

| Height (housings N … 2xV, ≤550 kV range) | 1760 … 4920 mm (1 or 2 units) |
| Min. creepage distance | 5085 … 15430 mm (housing N … 2xV) |
| Specified short-term load SSL | 4260 … 11930 N depending on housing; increased-SSL versions available |
| Specified long-term load SLL | 2980 … 8350 N depending on housing |
| Dynamic bending moment | 21 / 38 kNm |
| Weight | 131 … 304 kg max. (housing N … 2xV) |
| Silicone material temperature capability | –60 °C … +200 °C |
| Installation altitude (example config) | Up to 1000 m a.s.l. |
| Mounting options | Insulated 310×310 mm; grounded/insulated D=10" or 16.5"; grounded 191×191 mm |
Standards & certifications
| Standards | IEC 60099-4 |
| Housing flame retardance | IEC 60707, UL94 V-0 (self-extinguishing silicone rubber) |
Options & variants

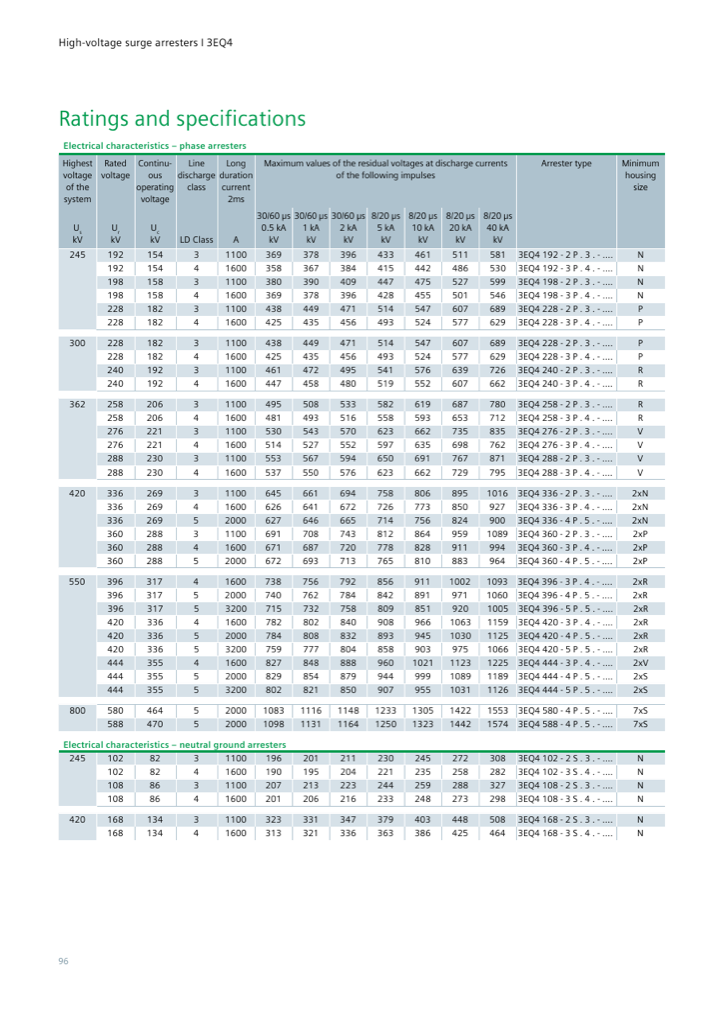

Representative phase-arrester ratings from the product-guide tables (pp. 96–97), ≤550 kV system voltage; heights are standard-SSL housings. Full catalog range Ur 102–588 kV incl. neutral-ground versions. MiniCat datasheet for 3EQ4 336-2PN36 confirms In 10 kA / LD class 3 / 2 units / H 3520 mm.
| Ur (kV) | Uc (kV) | In (kA) | LD class | Min. housing | Units | Height (mm) |
|---|---|---|---|---|---|---|
| 192 | 154 | 10 | 3 | N | 1 | 1760 |
| 228 | 182 | 10 | 3 | P | 1 | 1860 |
| 276 | 221 | 10 | 3 | V | 1 | 2460 |
| 336 | 269 | 10 | 3 | 2xN | 2 | 3520 |
| 360 | 288 | 20 | 5 | 2xP | 2 | 3720 |
| 420 | 336 | 20 | 4 | 2xR | 2 | 4120 |
| 444 | 355 | 20 | 5 | 2xS | 2 | 4320 |
Compatible accessories
Earth terminals
Earth terminal, copper tin-plated
Earth terminals
Eyebolt earth terminal
Earth terminals
NEMA earth, stainless steel
Earth terminals
NEMA earth, copper
Earth terminals
Double D14 earth terminal
Terminal adapters
DIN/NEMA adapter terminal
Terminal adapters
Adapter DIN/NEMA to double NEMA
Line connection
Line clamp
Special options
N₂ filling (inert gas)
Documents & downloads
Catalog High-voltage surge arresters — Product guide (3EQ4 chapter pp. 93–100)
Handbook Metal-oxide Surge Arresters in High-voltage Power Systems (4th edition)
Also covered in the technical library
Catalog High-voltage surge arresters — Product guide
Catalog High-voltage surge arresters — Siemens Energy product guide (online edition)
Brochure Our portfolio of surge arresters & composite insulators — Siemens Energy
