3EQ3

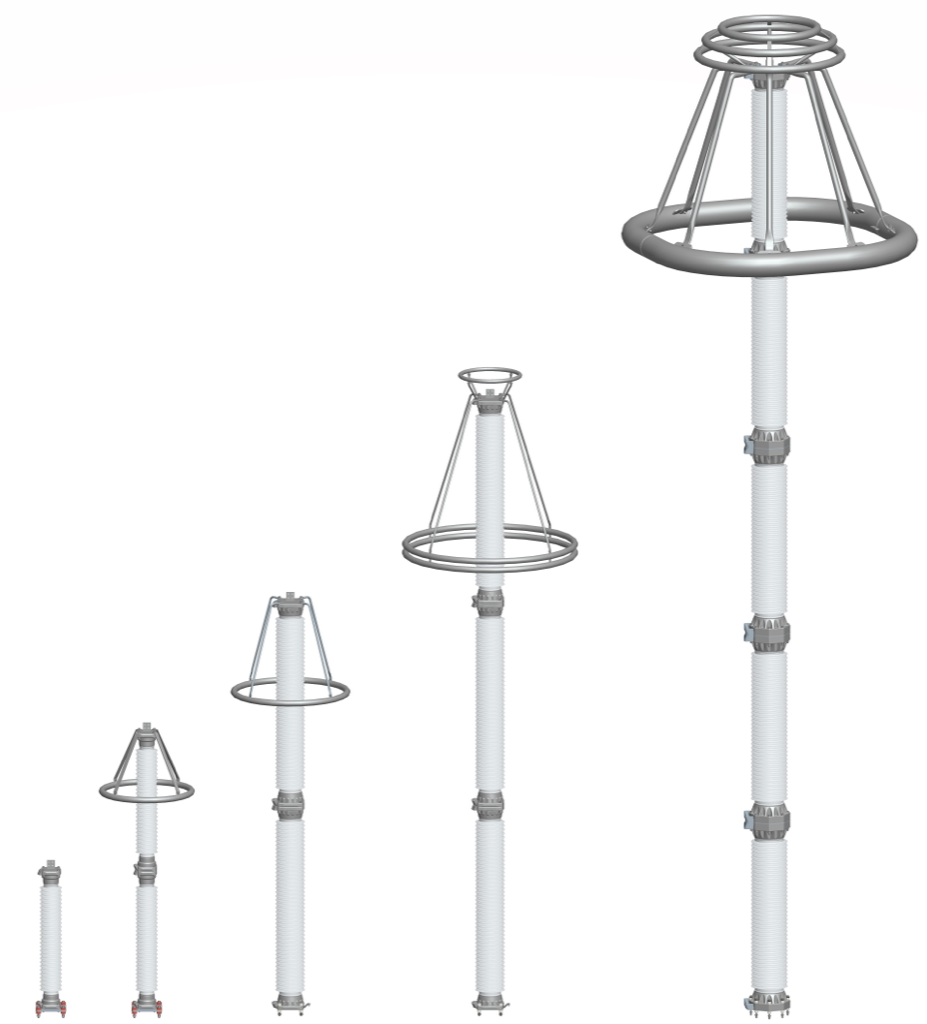

HV Surge Arrester 3EQ3, Composite hollow-core silicone housing, 20 kA, ≤800 kV
3EQ3
- Metal-oxide surge arrester with composite hollow-core design for high-voltage systems up to 800 kV
- Protects circuit breakers, transformers, generators, motors, capacitors, bushings and switchgear
- Line discharge class 4/5 — energy absorption up to 16 kJ/kVr, long-duration current impulse up to 3200 A
- High current impulse 100 kA (4/10 µs); rated short-circuit current up to 80 kA per catalog
- Tested to IEC 60099-4 · alternating sheds in gray silicone rubber
Transformer protectionCircuit breaker protectionSwitchgear and bushing protectionCapacitor bank protectionGenerator and motor protection
Sign in to see your price, availability and framework terms for 3EQ3.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EQ3
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EQ3 covers up to 800 kV of the hv station arresters range (≤ 800 kV across the category, √ scale).

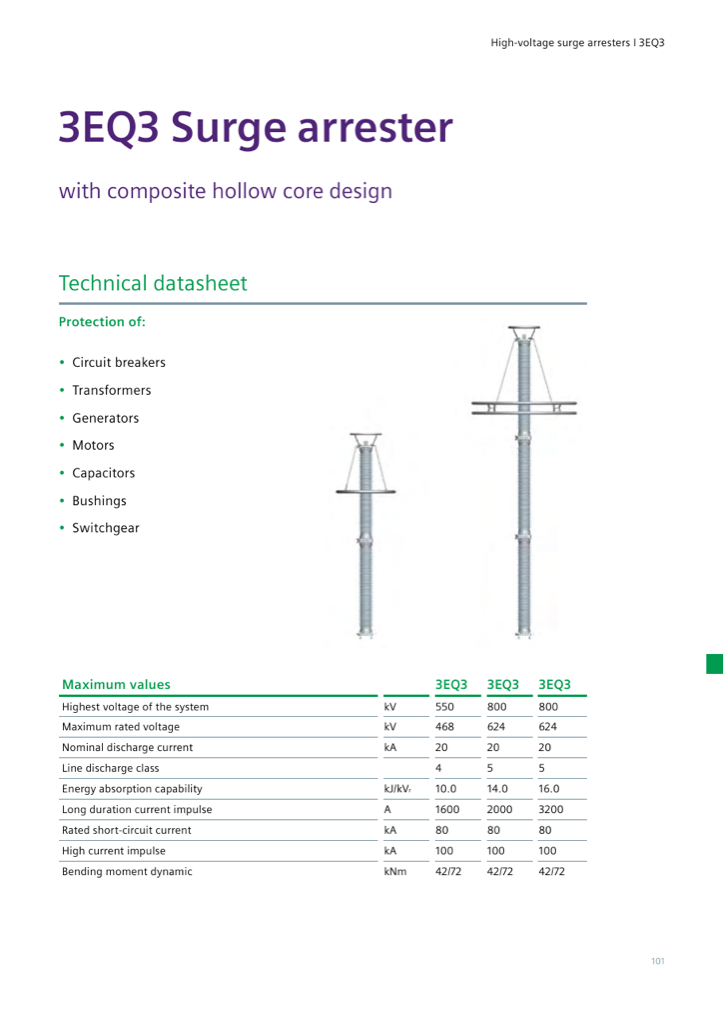

Specifications
Main
| Product family | 3EQ3 |
| Product type | Metal-oxide surge arrester |
| Application | High-voltage systems |
| Protection of | Circuit breakers, transformers, generators, motors, capacitors, bushings, switchgear |
Electrical
| Max. system voltage Us | 800 kV |
| Max. rated voltage Ur | 684 kV |
| Min. system voltage | 245 kV |
| Nominal discharge current In | 20 kA |
| Short-circuit rating Isc | 65 kA |
| Line discharge class | 4/5 |
| Rated short-circuit current (catalog family max) | 80 kA |
| Continuous operating voltage Uc | up to 499 kV (at Ur 624 kV) |
| Energy absorption capability Eth | 10.0 / 14.0 / 16.0 kJ/kVr (LD class 4 / 5 / 5) |
| Long-duration current impulse I2ms | 1600 / 2000 / 3200 A |
| High current impulse (4/10 µs) | 100 kA |
| Residual voltage example (8/20 µs, 20 kA, Ur 420 kV) | 1063 kV |
| Residual voltage example (8/20 µs, 20 kA, Ur 624 kV) | 1449 kV |
| Switching-impulse residual voltage example (30/60 µs, 2 kA, Ur 624 kV) | 1194 kV |
| Energy class per IEC 60099-4 Ed. 3.0 | Station, high duty (SH) criteria: In 20 kA, Qrs ≥ 2.4 C, Wth ≥ 10 kJ/kVr — 3EQ3 published ratings (In 20 kA, Eth 10–16 kJ/kVr) meet the In and Wth criteria |
Mechanical / environment
| Housing material | polymer |
| Design | Polymer hollow-core housing |
| Sheds | Alternating sheds, gray silicone rubber |

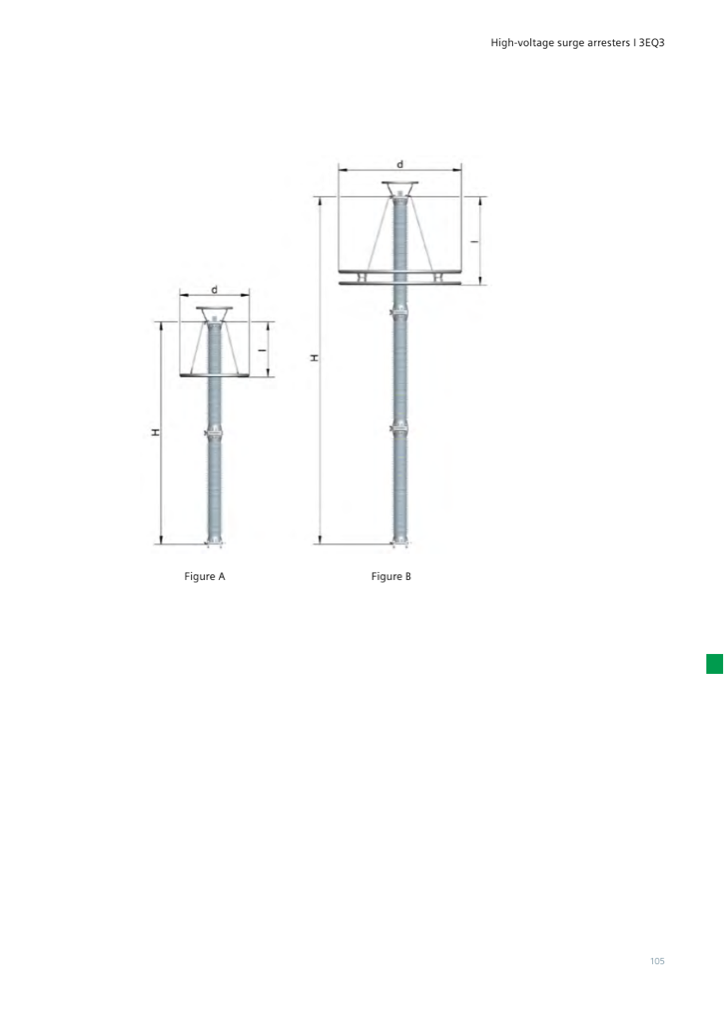

| Housing height H | 3400–7500 mm (housing sizes 2xL … 3xU) |
| Creepage distance | 9790–23700 mm (housing-size dependent) |
| Specified short-term load SSL | 5600–12350 N (12350 N at 2xL … 5600 N at 3xU) |
| Specified long-term load SLL | 3920–8640 N |
| Bending moment dynamic | 42/72 kNm |
| Grading ring diameter | 1200–2650 mm |
| Max. arrester weight | up to 538 kg (3xU) |
| Housing insulation example (3xU) | LIWV 3184 kV / SIWV 2306 kV / 1-min wet power-frequency 1482 kV |
| Mounting options | Grounded or insulated base; 270 × 270 mm bolt pattern or Ø 419.1 mm bolt circle (6×Ø22); NEMA variants |
| Housing material temperature performance | Silicone rubber, –60 °C to +200 °C (material rating) |
Standards & certifications
| Standards | IEC 60099-4 |
| Housing flammability (silicone rubber) | IEC 60707 / UL 94 V-0, self-extinguishing |
Options & variants

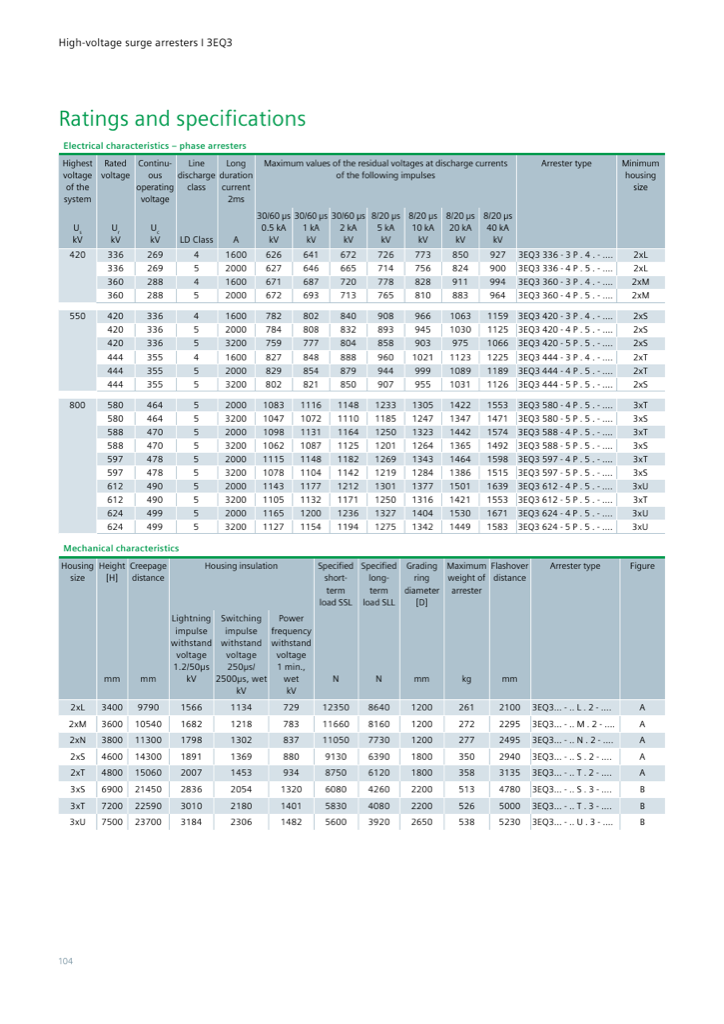

Representative catalog phase-arrester ratings (HV surge arrester catalog p. 104). Order numbers encode Ur in kV at MLFB positions 5–7 (catalog pp. 102–103); SAP materials 3EQ31245CZ7E (Ur 124 kV) and 3EQ30805CZ7 (Ur 80 kV) encode lower ratings under the same Ur-digit scheme and sit below the phase-arrester table above.
| Us (kV) | Ur (kV) | Uc (kV) | LD class | I2ms (A) | Residual @ 20 kA 8/20 µs (kV) | Min. housing | Type |
|---|---|---|---|---|---|---|---|
| 420 | 336 | 269 | 4 | 1600 | 850 | 2xL | 3EQ3 336-3P.4 |
| 420 | 360 | 288 | 5 | 2000 | 883 | 2xM | 3EQ3 360-4P.5 |
| 550 | 420 | 336 | 4 | 1600 | 1063 | 2xS | 3EQ3 420-3P.4 |
| 550 | 444 | 355 | 5 | 3200 | 1031 | 2xS | 3EQ3 444-5P.5 |
| 800 | 580 | 464 | 5 | 3200 | 1347 | 3xS | 3EQ3 580-5P.5 |
| 800 | 597 | 478 | 5 | 3200 | 1386 | 3xS | 3EQ3 597-5P.5 |
| 800 | 624 | 499 | 5 | 3200 | 1449 | 3xU | 3EQ3 624-5P.5 |
