DT-O
Oil-immersed distribution transformer, ≤ 5 MVA
DT-O
- Hermetically sealed, welded tank with high corrosion protection for low maintenance over the whole service life
- Low-loss designs compliant with EU Ecodesign Directive 2009/125/EC and Regulation (EU) 2019/1783
- Available with biodegradable ester insulating liquids — fire point above 300 °C, K-class rating per IEC 61039
- High withstand capability against harmonics; vibration, tank-rupture and short-circuit tested designs
- Sensformer® digital monitoring available across the fluid-immersed distribution transformer range
Distribution grid substationsIndustrial and urban power distributionOnshore and offshore wind farmsPV and battery energy storage plants
Sign in to see your price, availability and framework terms for DT-O.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about DT-O
15 minutes with the right transformers specialist — question in, booked call out. No email archaeology.
Checking availability…
DT-O covers up to 50 kV of the distribution transformers range (≤ 52 kV across the category, √ scale).
Specifications
Main
| Product type | Fluid-immersed (oil-immersed) distribution transformer |
| Family | Siemens Energy fluid-immersed distribution transformer portfolio (FITformer® — brand shown on the REN and WIND variants in the source documents) |
| Function | Conversion of medium voltage to low voltage at identical frequency |
| Applications | Distribution grids (DSOs, municipalities), industrial and urban areas; renewables (wind, PV, BESS) via REN variants |
| Insulating liquid | Mineral oil; synthetic or natural ester optional (readily biodegradable) |
| Delivery condition | Fully assembled and fluid-filled; plug-and-play solutions available |
Electrical ratings
| Rated power | 50 kVA – 5,000 kVA (this family; wider fluid-immersed portfolio up to 30 MVA) |
| Max system voltage | Up to 36 kV |
| Rated frequency | 50 or 60 Hz |
| Voltage regulation option | Regulated version with MR ECOTAP®: up to 100 A rated current, up to 9 taps, 825 V step voltage |
| Losses | Low no-load and load losses per EU Ecodesign; ultra-low-loss designs available |
| Harmonics | High withstand capability against harmonics |
Mechanical & environment
| Tank | Hermetically sealed, welded tank; high corrosion protection |
| Type-test evidence | Vibration, tank-rupture and short-circuit tested designs |
| Noise | Low noise level designs (optimized noise and losses) |
| Ester fluid benefits | Fire point > 300 °C, higher moisture tolerance, tank-rupture prevention improved up to 20%, readily biodegradable (OECD 301) |
| Digital option | Sensformer® Basic connectivity/monitoring on request |
Standards & certifications
| Product standards | IEC and EN (per factory portfolio slides); IEC 60076-14 high-temperature design applied on the ester-filled 66 kV WIND variant |
| Ecodesign | EU Ecodesign Directive 2009/125/EC and Regulation (EU) 2019/1783 |
| Fluid classification | K-class insulating liquid rating per IEC 61039 (ester option) |
| Factory certifications | ISO 9001, ISO 14001, ISO 45001, ISO 50001, ISO 3834-2 (Budapest DT factory) |
Options & variants
Rows from Siemens Energy fluid-immersed DT factory-portfolio slides (Budapest ≤ 5 MVA family; REN range from the Weiz factory slides) and the 66 kV FITformer WIND flyer. Full fluid-immersed portfolio spans up to 30 MVA / 145 kV.
| Variant | Rated power | Max system voltage | Notes |
|---|---|---|---|
| FITformer® — standard distribution | 50 – 5,000 kVA | 36 kV | Distribution grids; IEC/EN; 50 or 60 Hz |
| Regulated (MR ECOTAP®) | up to 100 A rated current | 36 kV | On-load voltage regulation, up to 9 taps, 825 V step voltage |
| Self-protected (TPC) | 50 – 250 kVA | 24 kV | Self-protected compact design |

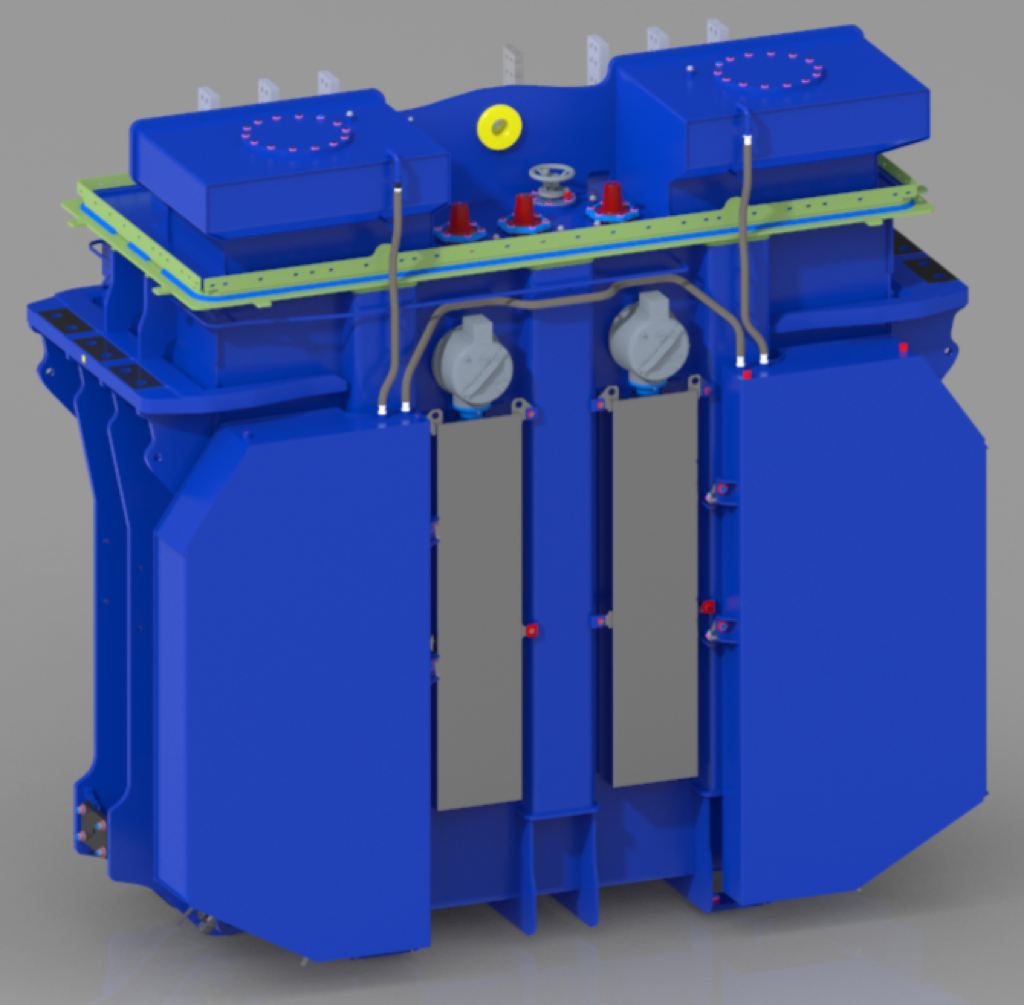

| FITformer® REN (renewables) | up to 20 MVA | 145 kV Um | Wind on/offshore, PV, BESS; water cooling and flat-wall tank options |

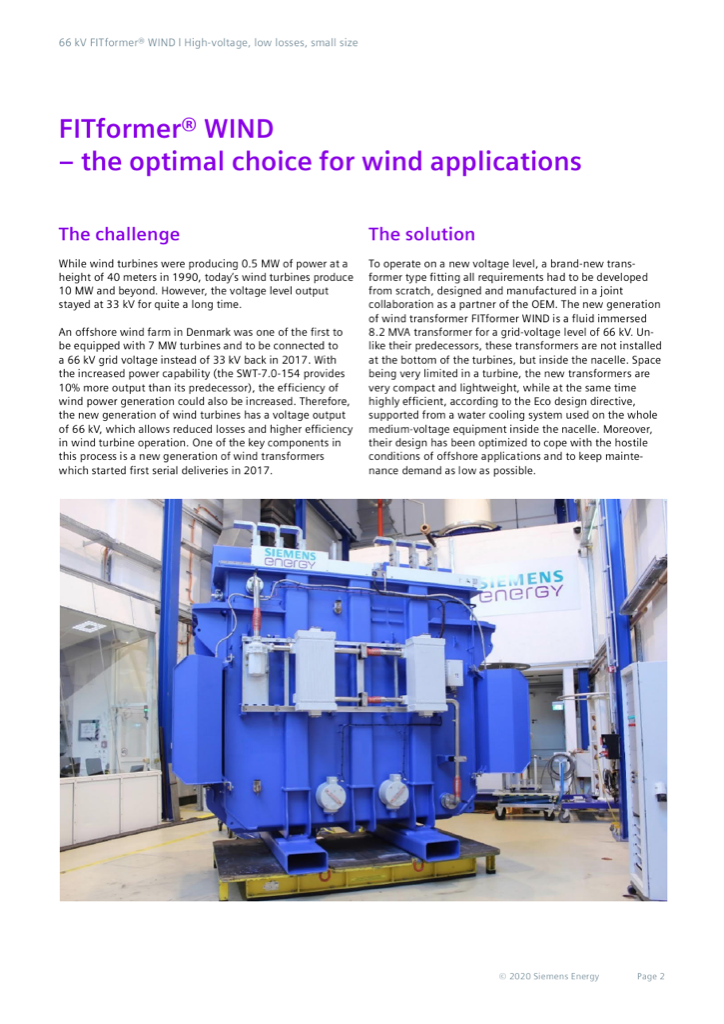

| FITformer® WIND 66 kV | 8.2 MVA | 66 kV | Nacelle-mounted offshore wind; ester-filled, IEC 60076-14 high-temperature design, weight < 20 t |
Compatible accessories
Digital monitoring
Sensformer® Basic digital connectivity and monitoring
Monitoring & diagnostics
SITRAM® H2Guard Lite online hydrogen (DGA) monitor, 25–5000 ppm, Modbus/DNP3.0
Voltage regulation
MR ECOTAP® on-load voltage regulation (up to 9 taps, 825 V step voltage)
Insulating fluid option
Biodegradable ester insulating liquid (synthetic or natural, K-class per IEC 61039)
