3EP3-G

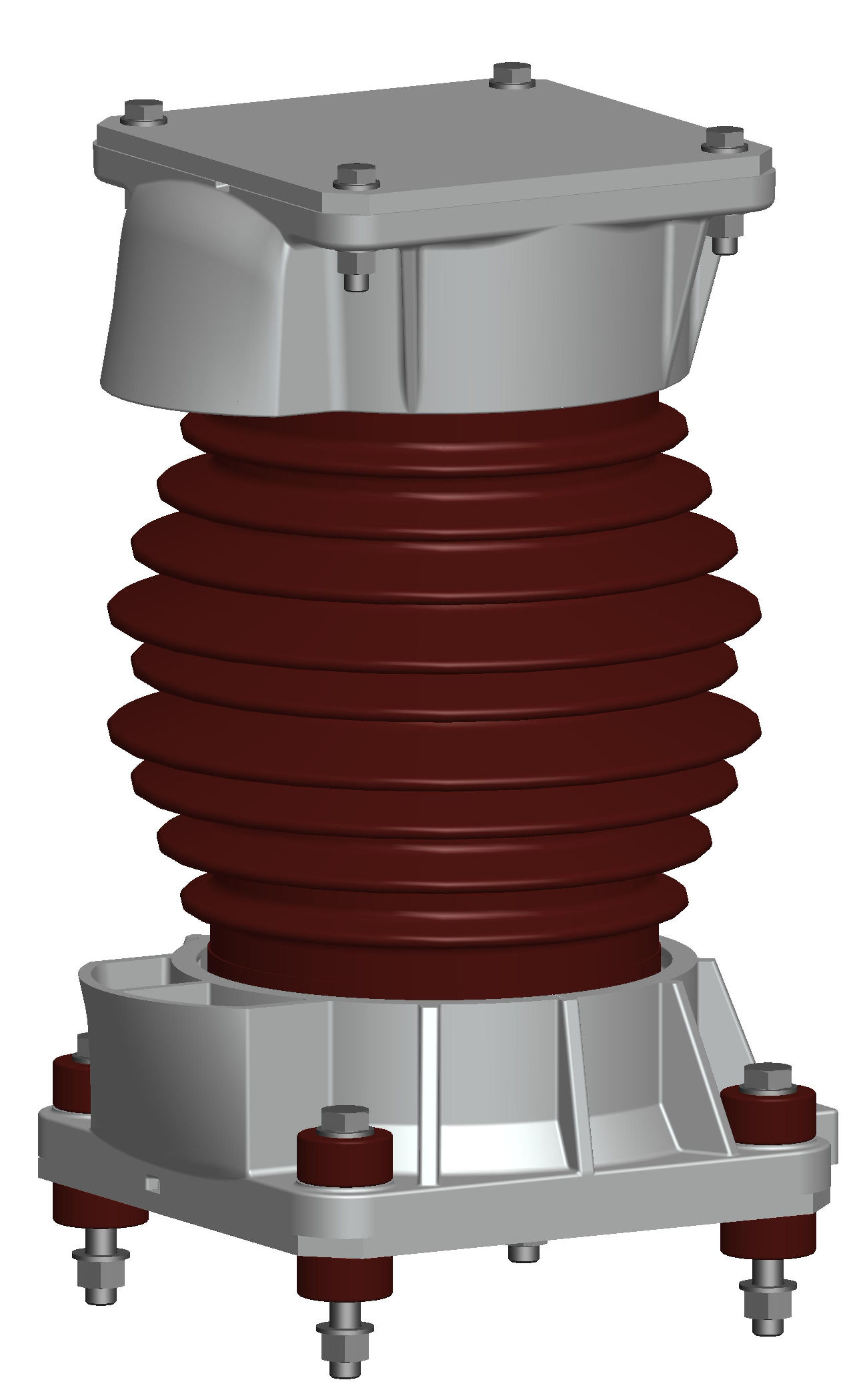

MV Generator Protection Arrester 3EP3-G, Porcelain housing, 10 kA, Isc=300 kA, ≤51 kV
3EP3-G
- Metal-oxide surge arrester for generator protection
- Housing: porcelain · line discharge class 5
- Tested to IEC 60099-4
Sign in to see your price, availability and framework terms for 3EP3-G.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EP3-G
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EP3-G covers up to 51 kV of the mv distribution arresters range (≤ 72.5 kV across the category, √ scale).
Specifications
Main
| Product family | 3EP3-G |
| Product type | Metal-oxide surge arrester |
| Application | Generator protection |
Electrical
| Max. system voltage Us | 51 kV |
| Max. rated voltage Ur | 36 kV |
| Min. system voltage | 12 kV |
| Nominal discharge current In | 10 kA |
| Short-circuit rating Isc | 300 kA |
| Line discharge class | 5 |
Mechanical / environment
| Housing material | porcelain |
| Design | Porcelain hollow-core housing |
Standards & certifications
| Standards | IEC 60099-4 |
Documents & downloads
Datasheet Technical datasheet 3EP3-G
Brochure Family brochure
Dimensions Dimension drawing
Downloads served from the DAM (Aprimo) via the CMS in production.
