3EJ3
MV High-Energy Arrester 3EJ3, High energy, SH class, 20 kA, Isc=65 kA, Ur ≤54 kV
3EJ3
- Metal-oxide surge arrester for medium-voltage distribution networks
- Housing: silicone · line discharge class 4
- Tested to IEC 60099-4, IEEE C62.11
Sign in to see your price, availability and framework terms for 3EJ3.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about 3EJ3
15 minutes with the right arresters & insulators specialist — question in, booked call out. No email archaeology.
Checking availability…
3EJ3 covers up to 54 kV of the mv distribution arresters range (≤ 72.5 kV across the category, √ scale).
Specifications
Main
| Product family | 3EJ3 |
| Product type | Metal-oxide surge arrester |
| Application | Medium-voltage distribution networks |
Electrical
| Max. system voltage Us | 54 kV |
| Max. rated voltage Ur | 54 kV |
| Min. system voltage | 3.6 kV |
| Nominal discharge current In | 20 kA |
| Short-circuit rating Isc | 65 kA |
| Line discharge class | 4 |
Mechanical / environment
| Housing material | silicone |
| Design | Silicone-rubber cage design |
Standards & certifications
| Standards | IEC 60099-4, IEEE C62.11 |
Compatible accessories
Mountings
Mounting, insulated, round
Mountings
Mounting, insulated, 170 mm
Mountings
Mounting, insulated, 200 mm
Mountings
Mounting, grounded, round
Mountings
Mounting, grounded, 170 mm
Mountings
Mounting, grounded, 200 mm
Mountings
Mounting, grounded, 310 mm
Terminals
Flat terminal
Terminals
L-bracket terminal
Documents & downloads
Datasheet Technical datasheet 3EJ3
Brochure Family brochure

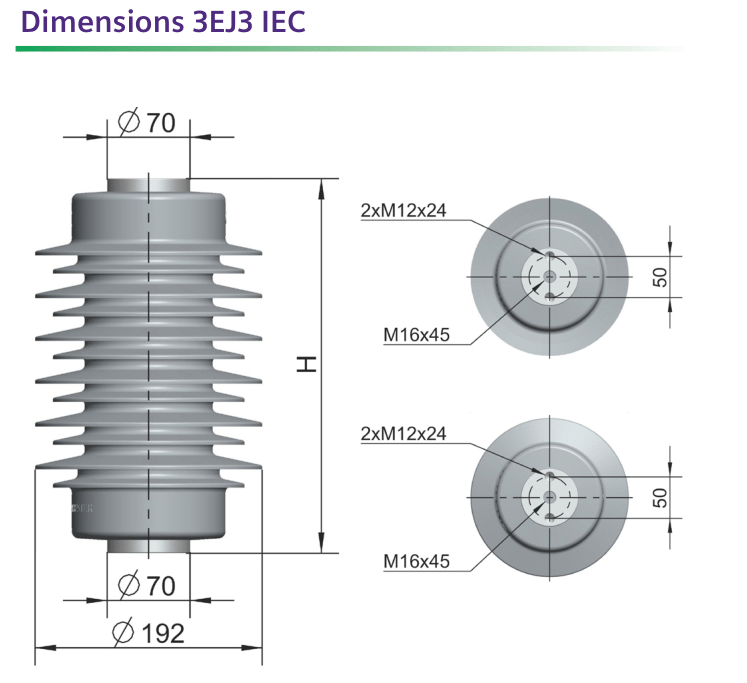

Dimensions Dimension drawing
