Noedra Node — substation digitalization
NODE
- Transformer digitalization — dissolved gas analysis in three tiers (1 gas / 4 gases + moisture / 8 gases + moisture with Duval and Rogers Ratio), PD monitoring with GIC tracking, OLTC and bushing monitoring (up to six leakage currents), cooling control, and digital-twin ageing analysis
- Switchgear digitalization — circuit-breaker health with 10 kHz high-frequency sampling (coil/motor currents, contact wear, i²t, travel curves), SF₆/clean-air gas density monitoring with time-to-next-alarm and leak trend detection, and PD diagnostics with neural-network pattern recognition mapped to the single-line diagram
- Substation SCADA HMI — real-time process visualization, alarm/event management, trending and analytics, historian with SQL export, automated reporting; 99.99% uptime with seamless redundancy and automatic failover
- PAC engineering & integration — full AC PAC system design to IEC 61850, migration from hardwired to process-bus/station-bus architectures, OEM-agnostic hardware supply, delivered turnkey or as partial scopes under one accountable partner
- Cybersecurity by design — IEC 62443 and NERC CIP / NIS2 compliance, encrypted communications, audit trails, multi-factor authentication, role-based access control, read-only gateways
- Universal connectivity — over 300 protocol drivers in the substation SCADA HMI, including IEC 61850, IEC 60870-5-104, DNP3, Modbus RTU/TCP, and OPC UA for new and legacy devices
Transformer condition monitoringSwitchgear and circuit-breaker diagnosticsSubstation SCADA and controlPAC system engineeringDigital substation retrofit
Sign in to see your price, availability and framework terms for NODE.
Horizon-3 pattern: this exact page gains commerce powers on sign-in — the URL never changes.
SIMULATED · ASK-AN-EXPERT PILOT DEMO
Ask an expert about NODE
15 minutes with the right digital specialist — question in, booked call out. No email archaeology.
Checking availability…
Specifications
Suite
| Portfolio | Noedra — Siemens Energy's digital framework ("the Mind of the Grid") |
| Suite role | Node — operational intelligence inside the substation ("Listen to the grid's heartbeat") |
| Sibling suites | Flow (line & asset monitoring) · Shield (OT security) · Atlas (advisory & consulting) |
| Delivery model | Software + engineering services — end-to-end system delivery, custom engineering, commissioning & training, ongoing support & lifecycle management |
| Scope options | Full turnkey PAC systems or partial scopes (protection-only / automation-only) |
Capabilities

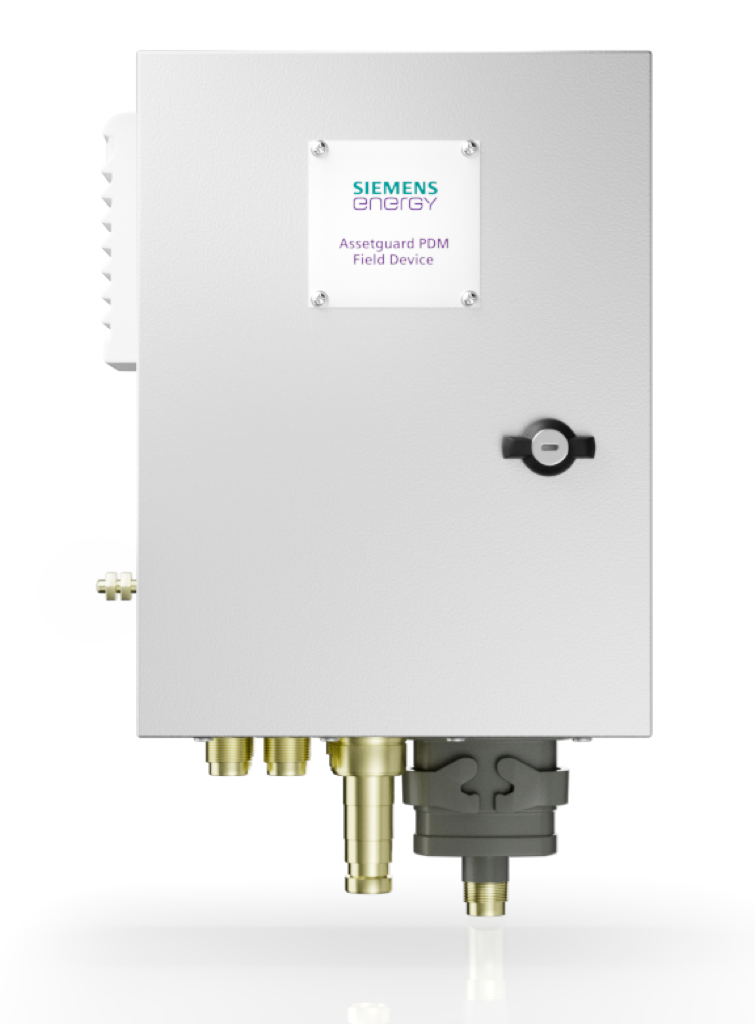

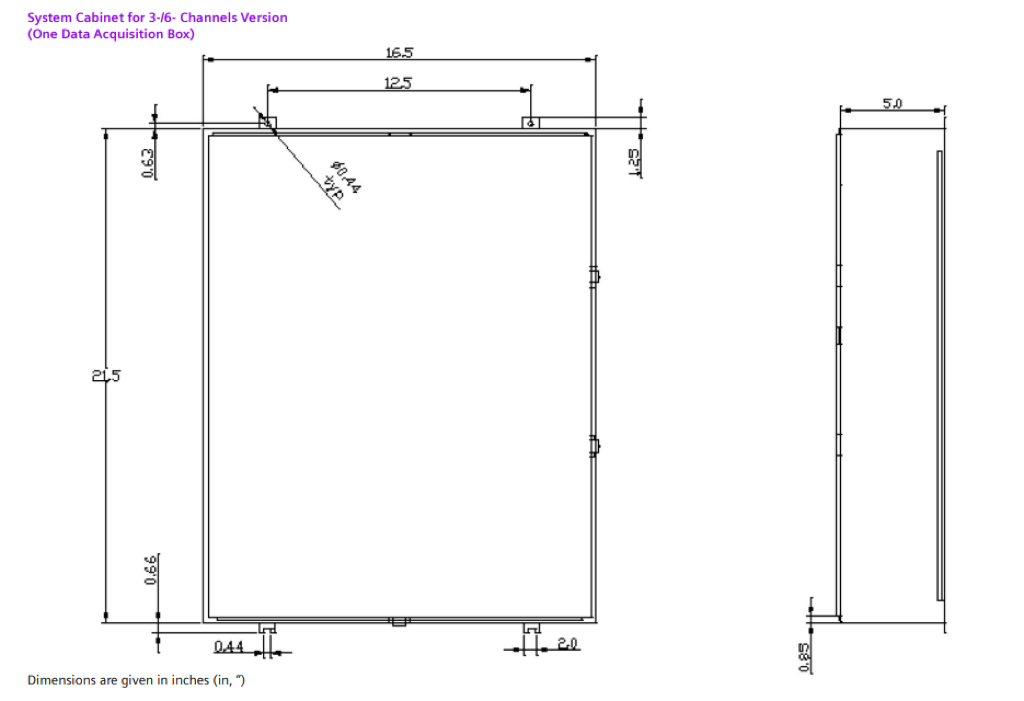

| Transformer — gas | Dissolved gas analysis: 1 gas (hydrogen), 4 gases + moisture, or 8 gases + moisture with Duval and Rogers Ratio diagnostics |
| Transformer — electrical | PD monitoring with GIC tracking; OLTC operations, motor performance and position; bushing power factor, dissipation factor, capacitance — up to six parallel leakage currents |
| Transformer — mechanical & thermal | Cooling control (fan/pump runtime, temperature range); digital-twin ageing analysis — hot-spot calculation, ageing index, overload guidance |
| Switchgear — mechanical | Breaker health at 10 kHz sampling: coil and motor currents, contact wear, total i²t, fault currents, operation counts, motor/travel curves |
| Switchgear — insulation | SF₆ and clean-air gas density monitoring: density trend leak detection, time-to-next-alarm, gas inventory, GIS system view, mechanical lifetime tracking |
| Switchgear — electrical | PD diagnostics with neural-network pattern recognition; PD activity mapped to the single-line diagram for localisation |
| SCADA HMI | Real-time visualization, alarm/event prioritization, trending and dashboards, historian with SQL export, automated reporting, automatic line coloring, topology checking, command sequencing, soft PLC (IEC 61131-3) |
| PAC engineering | IEC 61850 system modelling, testing and validation; process-bus and station-bus design; OEM-agnostic IEDs, relays, merging units and substation controllers |
Integration
| Substation protocols | IEC 61850 (MMS, GOOSE), IEC 60870-5-104, DNP3, Modbus RTU/TCP, OPC UA — 300+ protocol drivers (SCADA HMI); IEC 61850-9-2 process bus over optical fiber (PAC) |
| Monitoring connectivity | Modbus-RTU, Modbus-TCP, IEC 61850, OPC UA; optional via gateway: DNP3, IEC 60870-5-104 |
| APIs & systems | REST API and OPC UA; interfaces to asset management, MES/ERP, DCS, and cloud platforms |
| Cybersecurity | IEC 62443 and NERC CIP / NIS2 compliance; TLS/SSL encryption, audit trails, patch management, multi-factor authentication, role-based access, read-only gateways |
| Network redundancy | PRP/HSR; redundant servers with load balancing |
Deployment
| Environments | On-premises, virtualized (VMware, Hyper-V), and cloud |
| Hardware | Substation-grade, industrial, or COTS; engineering workstation and thin-client support |
| Edge processing | Local or cloud processing and storage via transformer-mounted panel — trending and diagnostics without third-party software |
| Availability | 99.99% uptime with zero data loss — seamless redundancy and automatic failover (SCADA HMI) |
| Scale | Small substations to enterprise-wide networks; multi-project and distributed SCADA |
| Platform foundation | Zenon-powered SCADA engine; Linux and Windows with hardened security; tag-based and server/client licensing |
| Asset coverage | Power transformers; air-insulated (AIS) and gas-insulated (GIS) switchgear |
Options & variants
Node is delivered per solution area — combined into one coordinated digital layer or engaged standalone; turnkey or partial scope.
| Solution area | Focus | Highlights |
|---|---|---|
| Transformer digitalization | Continuous transformer condition — thermal, mechanical, electrical, chemical | DGA (1/4/8 gases + moisture), PD + GIC, OLTC, bushing, cooling control, digital-twin ageing |
| Switchgear digitalization | Mechanical, insulation, and electrical health of AIS/GIS | Breaker prognostics @ 10 kHz, SF₆/clean-air gas density, neural-network PD diagnostics |
| Substation SCADA HMI | Next-generation substation control and monitoring | Advanced visualization & analytics, 300+ protocol drivers, 99.99% uptime, cybersecurity by design |

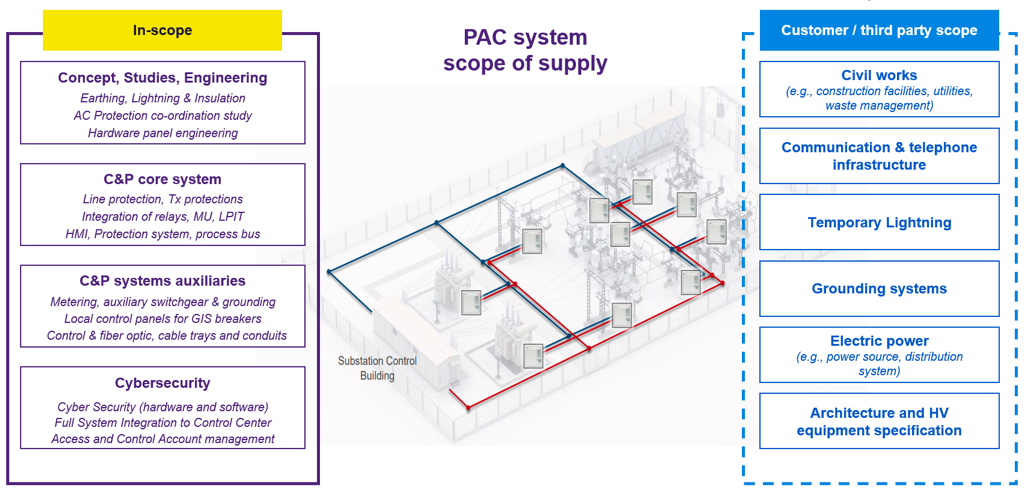

| PAC engineering & integration | Protection, automation & control for traditional and digital substations | IEC 61850 design/testing/validation, process-bus migration, OEM-agnostic hardware, turnkey delivery |
Documents & downloads
Brochure Transformers digitalization — Noedra Node suite (current online edition)
Brochure Switchgear digitalization — Noedra Node suite
Brochure Substation SCADA HMI — Noedra Node suite
Brochure Substation PAC engineering and integration services — Noedra Node suite
Also covered in the technical library
Brochure Transformers Digitalization — Noedra Node Suite for Substation Digitalization
Ordered designations
Representative orderable type designations of this family — searchable via the catalog search.
