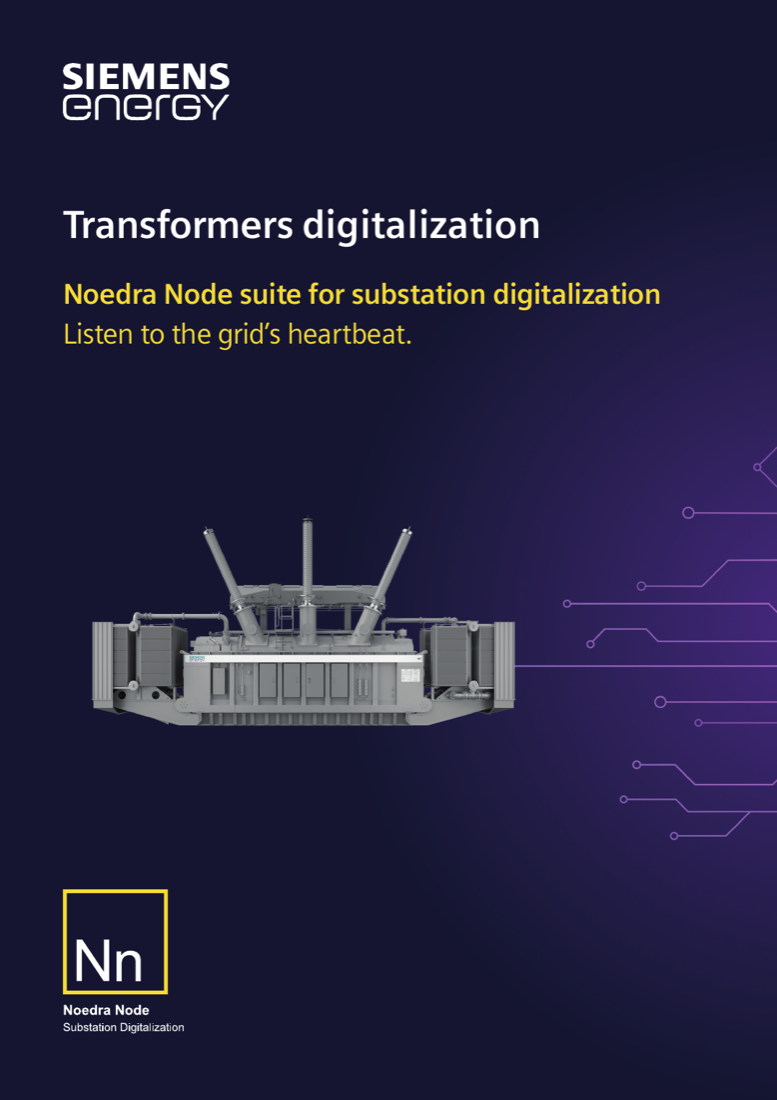

Brochure · EN — Siemens Energy brochure introducing the Noedra Node suite for transformer digitalization within digital substations. It positions Node as the substation-intelligence arm of the Noedra framework, combining continuous sensing, dissolved-gas analysis (1-gas, 4-gas + moisture, or 8-gas + moisture tiers), partial-discharge, OLTC and bushing monitoring with digital-twin thermal modeling and predictive analytics. The goal is to move operators from reactive maintenance to predictive asset management — detecting emerging faults early, optimizing loading and maintenance, and extending transformer life — with secure local or cloud data processing and standard protocol integration (Modbus-RTU/TCP, IEC 61850, OPC UA, optional DNP3 and IEC 60870-5-104 via gateway).

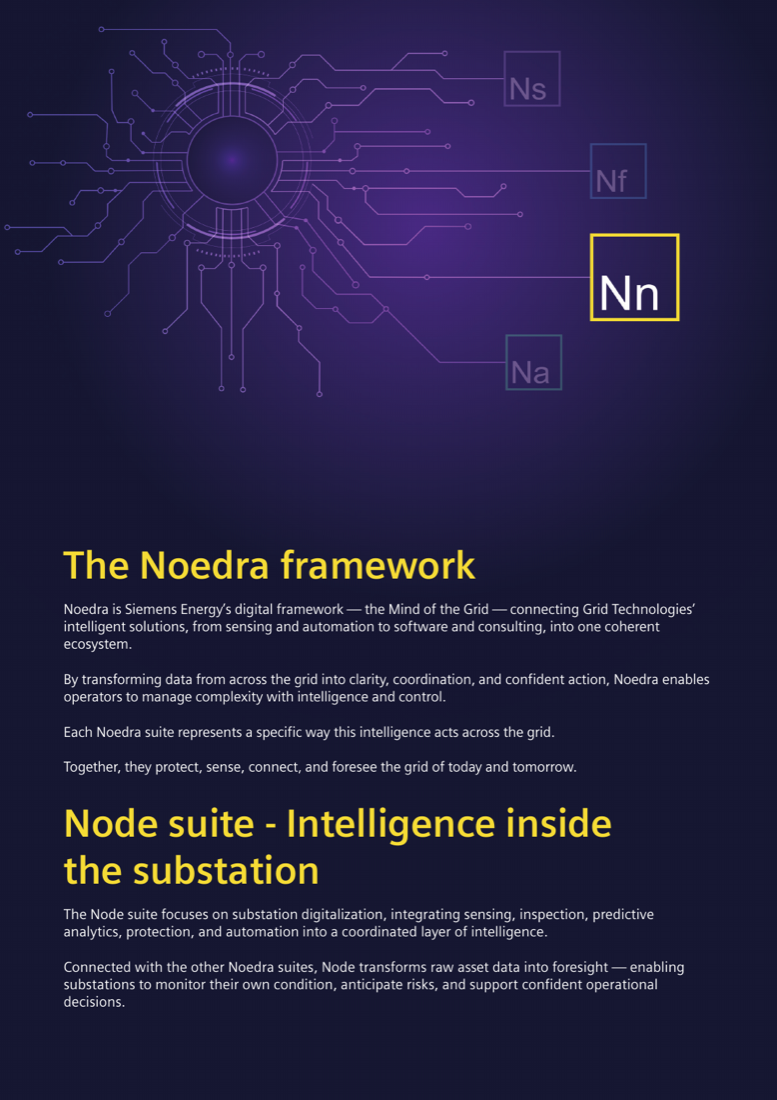

Noedra is Siemens Energy's digital framework — described as the Mind of the Grid — that connects Grid Technologies' intelligent solutions, from sensing and automation to software and consulting, into one coherent ecosystem. Each Noedra suite represents a distinct way this intelligence acts across the grid; together they protect, sense, connect, and foresee grid operation.
The Node suite is the substation-digitalization arm: it integrates sensing, inspection, predictive analytics, protection, and automation into a coordinated intelligence layer. Connected with the other Noedra suites, Node turns raw asset data into foresight, letting substations monitor their own condition, anticipate risks, and support confident operational decisions.
Substations are the backbone of the power grid, and transformer health directly affects grid stability, safety, and efficiency. Operators face ageing transformer fleets, rising load demands and operational stress, integration of renewables and distributed energy resources, higher expectations for reliability and transparency, and pressure to cut unplanned outages, maintenance costs, and environmental impact.
Traditional inspection and maintenance are no longer sufficient. Operators need continuous visibility into transformer condition, predictive analytics that anticipate failures, and actionable insight to intervene before issues escalate. The Noedra Node suite for transformer digitalization enables the shift from reactive maintenance to predictive asset management, optimized transformer performance, and stronger grid resilience.

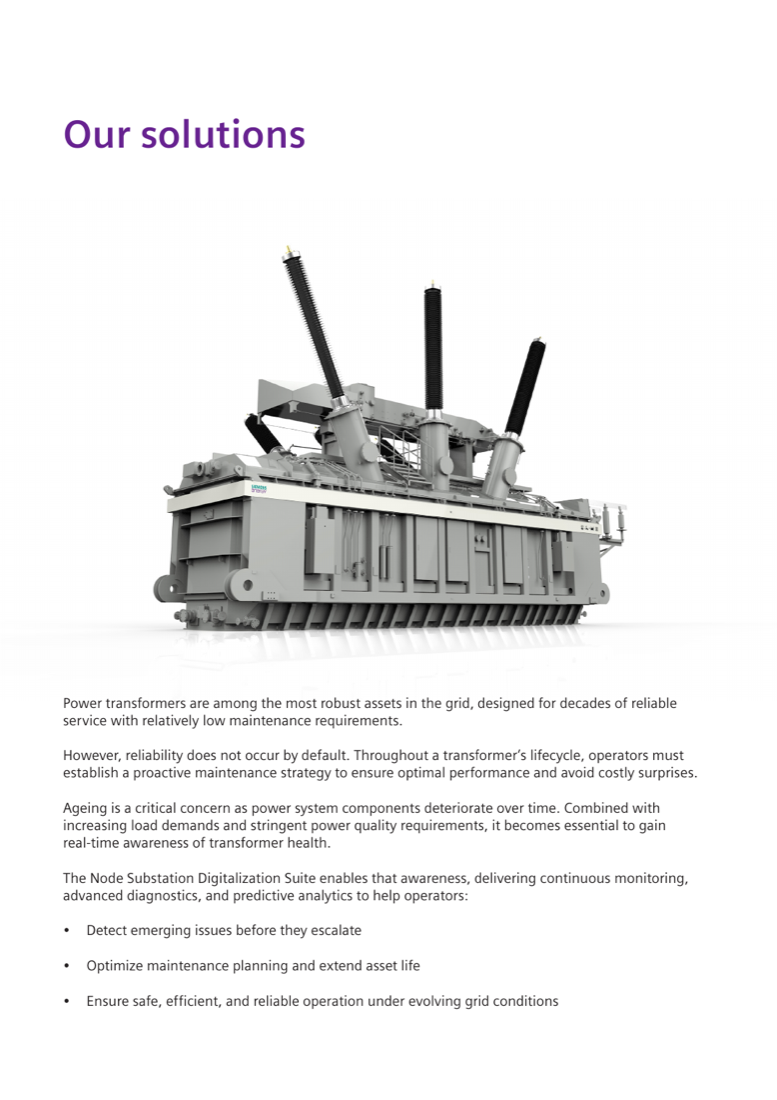

Power transformers are among the grid's most robust assets, designed for decades of reliable service with relatively low maintenance needs — but reliability does not happen by default. Ageing components, growing load demands, and stringent power-quality requirements make real-time awareness of transformer health essential across the asset lifecycle.
The Node Substation Digitalization Suite delivers that awareness through continuous monitoring, advanced diagnostics, and predictive analytics, helping operators detect emerging issues before they escalate, optimize maintenance planning and extend asset life, and ensure safe, efficient, reliable operation under evolving grid conditions.
Cooling control gives real-time visibility of the cooling system by tracking the operation and run-time of fans and pumps, keeping transformers within their specified temperature range so heat is dissipated effectively and performance stays stable.
Ageing analysis uses a digital-twin approach with thermal modeling and data from existing sensors to estimate transformer life consumption. It supports safe overload management, optimized loading, and long-term life-extension decisions through a deeper understanding of thermal behavior.
Three dissolved-gas analysis tiers cover different monitoring depths. The 1-gas option enables fleet-wide monitoring by continuously tracking hydrogen — the most sensitive indicator of electrical faults — giving early warning of partial discharge, high-energy discharge (arcing), and thermal faults in oil or cellulose.
The comprehensive 4-gases-plus-moisture option broadens the diagnostic view: it detects evolving faults early, pinpoints their origin, and warns comprehensively of partial discharge, arcing, thermal faults in oil or cellulose, and oil leaks.
The complete 8-gases-plus-moisture option supports early fault detection and diagnostics using proven methods such as Duval and Rogers Ratio, identifying partial discharge, high-energy discharge (arcing), thermal faults in oil or cellulose, and oil leaks.
| Tier | Measured | Detects |
|---|---|---|
| Gas analysis – 1 gas | Hydrogen (continuous) | Partial discharge, high-energy discharge (arcing), thermal faults in oil or cellulose |
| Comprehensive Gas analysis – 4 gases + moisture | Four key gases plus moisture | Partial discharge, arcing, thermal faults in oil or cellulose, oil leaks; pinpoints fault origin |
| Complete Gas analysis – 8 gases + moisture | Eight gases plus moisture | Same fault classes with full diagnostics via Duval and Rogers Ratio methods |
Partial discharge (PD) monitoring targets an early indicator of insulation deterioration caused by defects, movement of energized parts, or design flaws. Early warning of harmful PD activity allows timely intervention to prevent catastrophic failures, reduce downtime, and extend transformer life; GIC tracking adds extra protection against geomagnetic disturbances.
OLTC monitoring tracks tap-changer operations, motor performance, and position — the only moving part inside the transformer — enabling early detection of wear or abnormal behavior, reliable voltage regulation, and prevention of switching-related failures.
Bushing monitoring combines multiple analysis methods to assess bushing condition: power factor, dissipation factor, and capacitance at nominal voltage, with high-precision parallel monitoring of up to six leakage currents. It detects early insulation degradation and internal layer breakdown before failures occur.
Real-time monitoring continuously tracks oil level and temperature, winding current and temperature, and ambient conditions, and integrates dissolved gas analysis (single or multi gas), insulation moisture measurement, and bushing/OLTC health indicators for a complete live picture of transformer condition.
Analytics include thermal modeling and a digital twin for hot-spot calculation, ageing index, and overload guidance, plus PD pattern recognition, dynamic loading assessment, insulation moisture analysis, and fleet-wide family-based evaluation and comparison.
Data processing runs locally or in the cloud via the transformer-mounted panel, performing trending and diagnostics for incipient failures without third-party software — for higher reliability, faster insights, and fewer false alarms.
Connectivity and security: encrypted data transfer to web/mobile dashboards with read-only gateways for safe remote access; API integration with asset and SCADA systems supporting Modbus-RTU, Modbus-TCP, IEC 61850, and OPC UA, with DNP3 and IEC 60870-5-104 optional via gateway. An intranet-only access option enhances cyber security and deployment flexibility.
Siemens Energy positions itself as a long-term partner rather than only a technology provider: decades of proven expertise in power systems and grid modernization, global reach with local-requirement coverage, solutions tailored to each operator's needs, trusted advisory partnership, and continuous innovation and support.
The brochure closes with the call to turn transformer visibility into foresight — modernizing transformer health management and strengthening substation performance with Noedra Node as part of Siemens Energy's integrated digital-substation portfolio.
