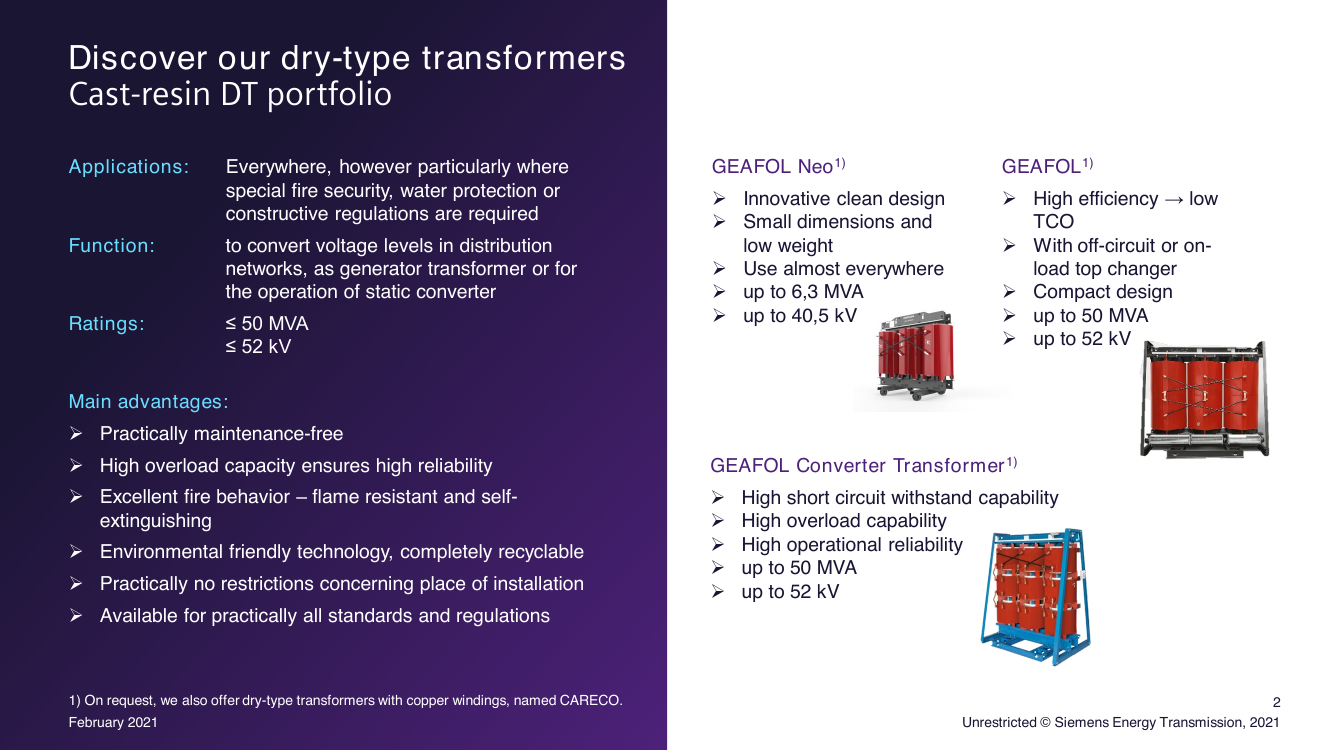

GEAFOL cast-resin transformers are environmentally friendly dry-type transformers for use everywhere, however particularly where special fire security, water protection or constructive regulations are required. Their function is to convert voltage levels in distribution networks, as generator transformer or for the operation of static converters, with portfolio ratings of ≤ 50 MVA and ≤ 52 kV.
Main advantages named for the portfolio: practically maintenance-free; high overload capacity ensures high reliability; excellent fire behavior — flame resistant and self-extinguishing; environmental friendly technology, completely recyclable; practically no restrictions concerning place of installation; and available for practically all standards and regulations.
The portfolio comprises three product lines, summarized in the table below. On request, dry-type transformers with copper windings are also offered, named CARECO.
| Product line | Highlights | Ratings |
|---|---|---|
| GEAFOL Neo | Innovative clean design; small dimensions and low weight; use almost everywhere | up to 6,3 MVA; up to 40,5 kV |
| GEAFOL | High efficiency → low TCO; with off-circuit or on-load top changer; compact design | up to 50 MVA; up to 52 kV |
| GEAFOL Converter Transformer | High short circuit withstand capability; high overload capability; high operational reliability | up to 50 MVA; up to 52 kV |
The presentation groups the dry-type transformers' features and customer benefits into six categories, reproduced in the table below. Notable individual claims: the windings are free from partial discharges up to twice the rated voltage, ratings can be increased up to 50% by mounting fans, and installation at load centers permits optimum system design where high efficiency equals cost optimization.
| Category | Features |
|---|---|
| Safe and reliable | High power-frequency voltage and impulse voltage strength; free from partial discharges up to twice the rated voltage; huge overload capability; moisture-resistant and tropicalized; high and low temperatures |
| Environmentally acceptable | No liquid insulator; low noise level; flame-resistant and self-extinguishing; recyclable |
| Economical | Installation at load centers permits optimum system design (high efficiency = cost optimization); simple rearrangement of power supplies when changing sites; no special rooms or protection needed |
| Adaptable | Increase of rating up to 50% by mounting of fans |
| Compact | Small ground area requirement |
| Practically maintenance-free | No specific maintenance needed; only cleaning and inspection recommendation by system owners |

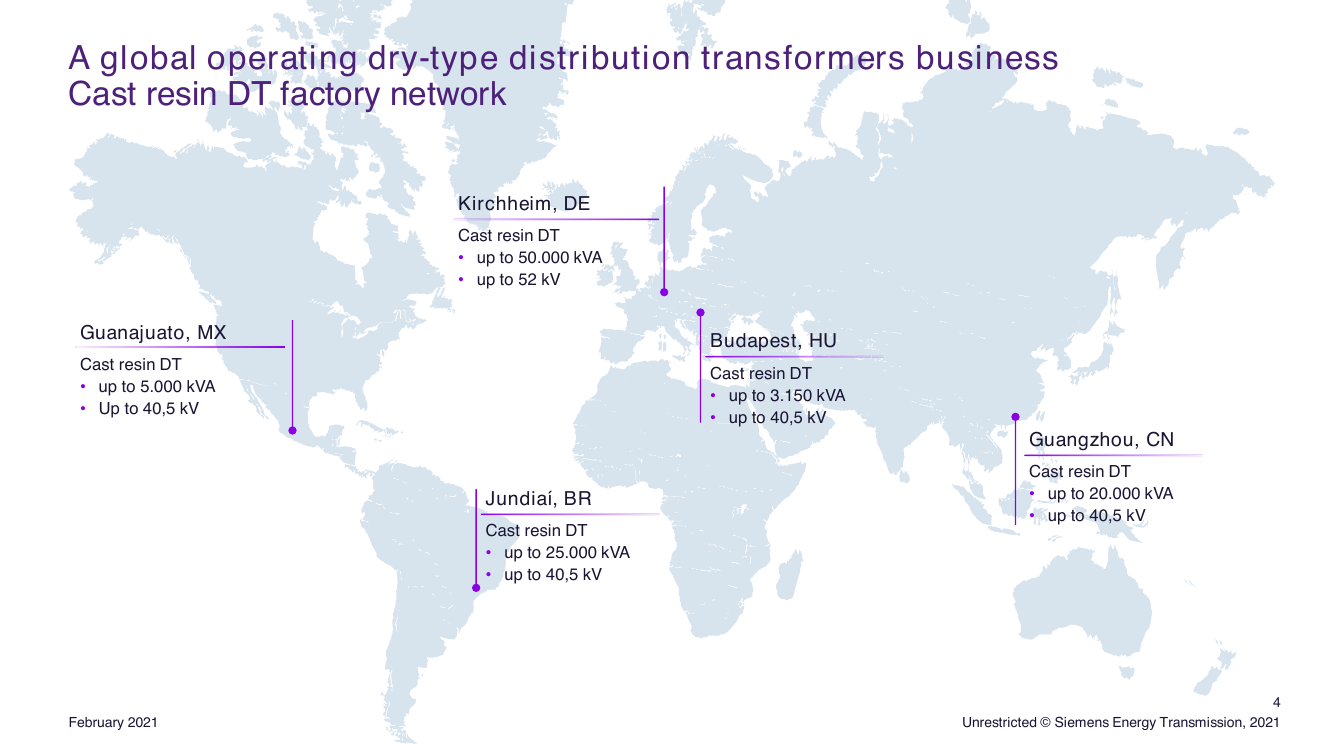

The cast-resin DT factory network spans five plants on four continents, each building cast-resin distribution transformers up to the capacities listed below.
| Factory | Scope | Max. power | Max. voltage |
|---|---|---|---|
| Kirchheim, DE | Cast resin DT | up to 50.000 kVA | up to 52 kV |
| Jundiaí, BR | Cast resin DT | up to 25.000 kVA | up to 40,5 kV |
| Guangzhou, CN | Cast resin DT | up to 20.000 kVA | up to 40,5 kV |
| Guanajuato, MX | Cast resin DT | up to 5.000 kVA | up to 40,5 kV |
| Budapest, HU | Cast resin DT | up to 3.150 kVA | up to 40,5 kV |
The presentation closes with a project reference: GEAFOL cast-resin transformers supplied for a photovoltaic plant in Brazil (FY20). Highlights: low losses transformers for a booming market, and a customized design for 30 plants in more than 17 cities in Brazil. Product specification: 1000 kVA 13,8/0,6 kV ANAN; 500 kVA 13,8/0,6 kV ANAN; outdoor solution IP54. (Project, customer and destination names on the reference slide are omitted here per the customer-privacy guardrail.)
