Datasheet · EN — Single-page Siemens Energy data sheet (flyer format, DIN A4, 2021) introducing SVC PLUS, the advanced STATCOM for grid stability. It describes the voltage-sourced converter (VSC) technology based on a modular multilevel converter (MMC) design and lists the headline figures: over 100 installations of experience, ratings up to ±400 Mvar in a single branch solution, a containerized variant up to ±150 Mvar, fast voltage regulation under steady-state and transient network conditions, and optional active filtering. The document contains no detailed ratings table — only the highlight figures reproduced here.
This single-page Siemens Energy document (flyer-format data sheet, DIN A4, published 2021) presents SVC PLUS, described as "The advanced STATCOM — a robust and flexible solution in a fast-changing environment". Siemens Energy positions itself as the market leader for STATCOM and innovative developments, inviting operators to make Siemens Energy their key partner to create grid stability.
Fidelity note: the document is a one-pager and contains no detailed electrical ratings table — the only quantitative figures printed are the highlight values reproduced verbatim in the sections below. Further product information is referenced at siemens-energy.com/SVCPLUS.

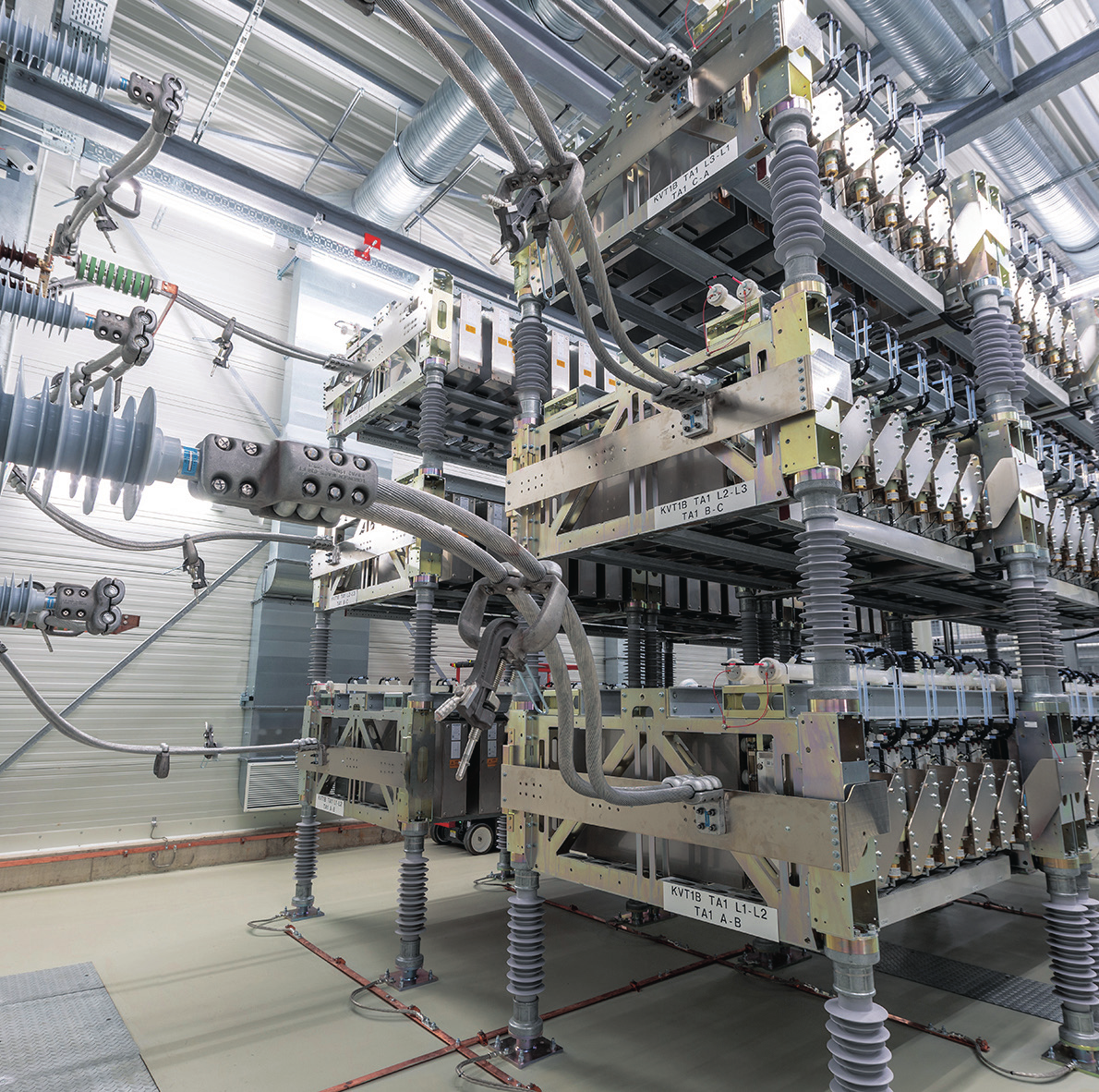

SVC PLUS uses voltage-sourced converter (VSC) technology based on a modular multilevel converter (MMC) design. It offers a high degree of flexibility in converter design and station layout.
Robust and proven standard components ensure excellent reliability in this latest generation of STATCOM. A small physical footprint reduces turnkey costs and offers an ideal solution when limited space is available.
The document lists the following highlights for SVC PLUS, reproduced verbatim: modular multilevel converter in the SVC PLUS system with over 100 installations of experience; the SVC PLUS can be rated up to ±400 Mvar in a single branch solution; containerized SVC PLUS up to ±150 Mvar in a single branch solution; fast voltage regulation under various load conditions during both steady state and transient network conditions; and active filtering as an option.
The document closes by noting that SVC PLUS is the basis for SVC PLUS FS and mobile STATCOM.
| Highlight | Value as printed |
|---|---|
| Installed experience | Modular multilevel converter in the SVC PLUS system with over 100 installations of experience |
| Maximum rating | The SVC PLUS can be rated up to ±400 Mvar in a single branch solution |
| Containerized variant | Containerized SVC PLUS up to ±150 Mvar in a single branch solution |
| Voltage regulation | Fast voltage regulation under various load conditions during both steady state and transient network conditions |
| Active filtering | Active Filtering as an option |
| Platform | SVC PLUS is the basis for SVC PLUS FS and mobile STATCOM |
