Datasheet · EN — Four-page Siemens Energy datasheet (© 2021) for the SPS2-362 high-voltage SF6 dead tank circuit breaker rated 362 kV. Covers the globally standardized design based on the FA spring-spring operating mechanism and 3AP arc-assist interrupter, standard features (2-cycle interrupting, one break per phase up to 63 kA, no TRV capacitors up to 63 kA), application-based customizations (point-on-wave switching, pre-insertion resistors, high seismic, -50 °C tank heaters), full ratings and supplementary specification tables, and dimensioned outline drawings.

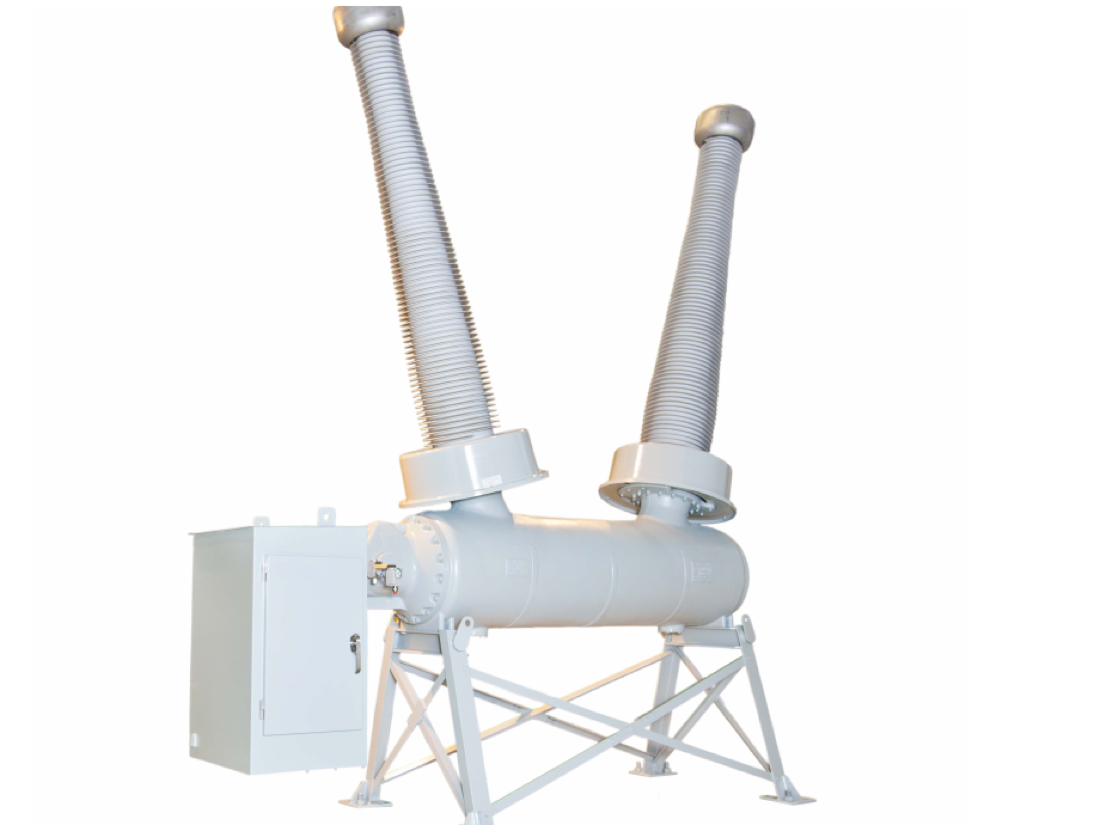

The Siemens Energy SPS2 362 kV dead tank circuit breakers are built around two proven components shared across the entire SPS2 portfolio (15 kV – 550 kV): the time-tested FA spring-spring operating mechanism and the 3AP arc-assist interrupter.
The track record behind the platform is substantial: Siemens Energy has delivered more than 160,000 breakers worldwide, including over 46,000 SPS2 circuit breakers in the US market alone since the product line's release in 1997.
Every SPS2 362 kV breaker ships with the following as standard: no TRV capacitors are necessary for breakers rated up to 63 kA; 2-cycle interrupting time; the unit ships fully assembled and factory tested; a single break per phase handles ratings up to 63 kA; and the design requires no adjustments and virtually no maintenance.
The breaker can be tailored to the application with a range of factory options: a phase synchronizing device (PSD) for reliable point-on-wave switching; pre-insertion resistors (150 – 3500 Ω) with externally adjustable insertion time; high seismic designs qualified per IEEE 693; tank heaters enabling operation down to -50 °C; a common frame version; and composite bushings. Further options are available through local Siemens Energy representatives.
Headline ratings for the SPS2-362 type as printed in the datasheet.
| Type | Related max kV | Rated continuous current (A, rms) | Rated short circuit current at rated (kA) | Interrupting time (cycles) | Lightning impulse withstand voltage BIL (kV) | Chopped wave, 2µs (kA) | Closing and latching capability (kA) |
|---|---|---|---|---|---|---|---|
| SPS2-362 | 362 | up to 5000 | up to 80 | 2 | 1300 | 1680 | up to 216 |
Standard and custom values for operating environment, duty cycle, mechanical data and control voltages. A dash indicates no custom variant is listed.
| Supplementary specifications | Unit | Standard | Custom |
|---|---|---|---|
| Operating temperature range | [C] | -30 to 55 | -50 to 55 |
| Rated reclosing time | cycles | 12 | – |
| Rated duty cycle | – | OCO – 15s – CO (no derating) | – |
| External creep | [in] | 356 | 442 |
| Breaker weight | [lb] | 5,688 (per phase) | – |
| SF6 weight / pressure | [lb/psi] | 385 / 87 | – |
| Seismic withstand | – | IEEE 693 | IEEE 693 (high) |
| Mechanical endurance | – | Class M2 | – |
| Capacitive switching | – | Class C2 | – |
| Motor voltage | [Vdc] | 48/125/250 | – |
| Motor voltage | [Vac] | 120/240 | – |
| Auxiliary voltage | [Vac] | 120/240 | – |
| Trip and close coil rating | [Vdc] | 48/125/250 | – |

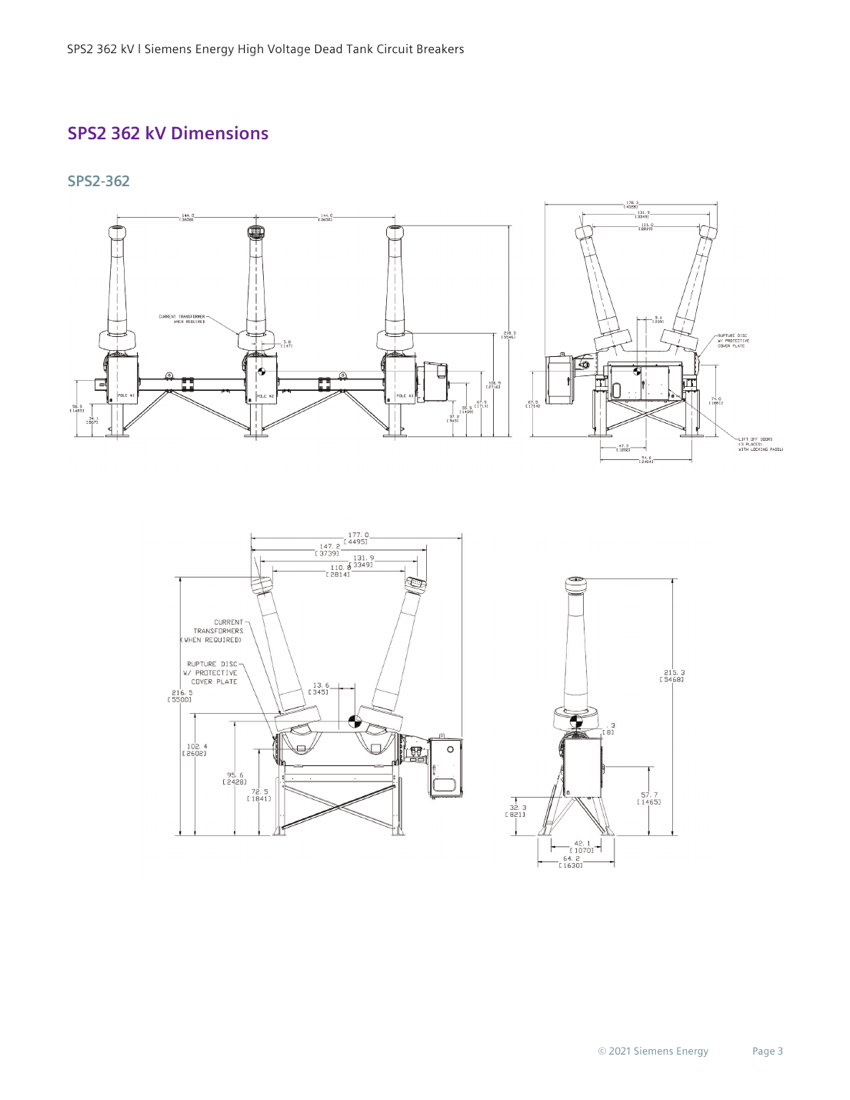

The datasheet provides dimensioned outline drawings of the SPS2-362 in front, side and per-pole views, with all dimensions given in inches over millimeters in brackets. Key envelope figures from the drawings include an overall width across bushings of 177.0 in [4495 mm], bushing centerline spacings of 147.2 in [3739 mm], 131.9 in [3349 mm] and 110.8 in [2814 mm], an overall height of 216.5 in [5500] / 215.3 in [5468 mm], tank centerline height of 102.4 in [2602 mm], frame heights of 95.6 in [2428] and 72.5 in [1841 mm], and a per-pole footprint of 42.1 in [1070] × 64.2 in [1630 mm]. The drawings also locate the current transformers (when required), the rupture disc with protective cover plate, and the lift-off doors (3 places) with locking paddle.
