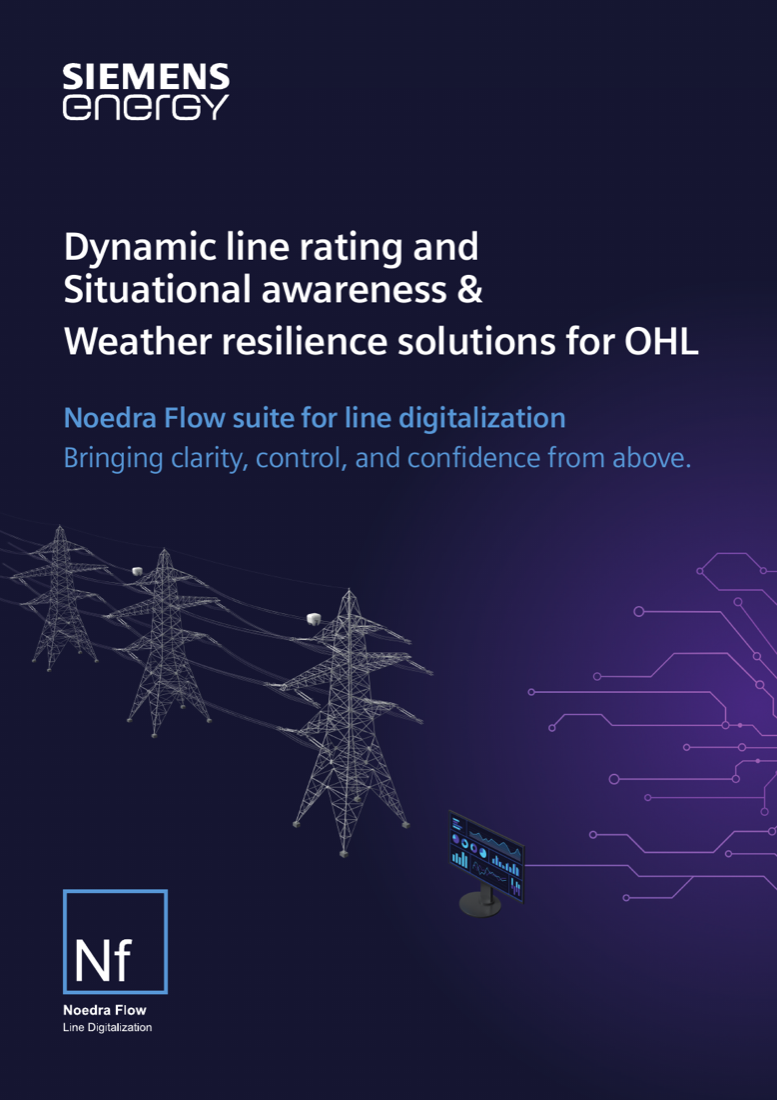

Brochure · EN — An 8-page Siemens Energy Grid Technologies brochure presenting the Noedra Flow suite for overhead-line (OHL) digitalization. It covers two solution areas: Dynamic Line Rating (DLR) / Ambient Adjusted Ratings (AAR), which use line-mounted sensor networks and analytics to compute real-time ampacity so operators can safely exceed conservative static ratings, defer reinforcements, and comply with regulations such as FERC 881; and Situational Awareness & Weather Resilience, which delivers real-time detection and alerts for icing, abnormal vibration (galloping, aeolian), and extreme weather events. Includes technical highlights on monitored parameters, analytics, data processing, and SCADA/API integration.

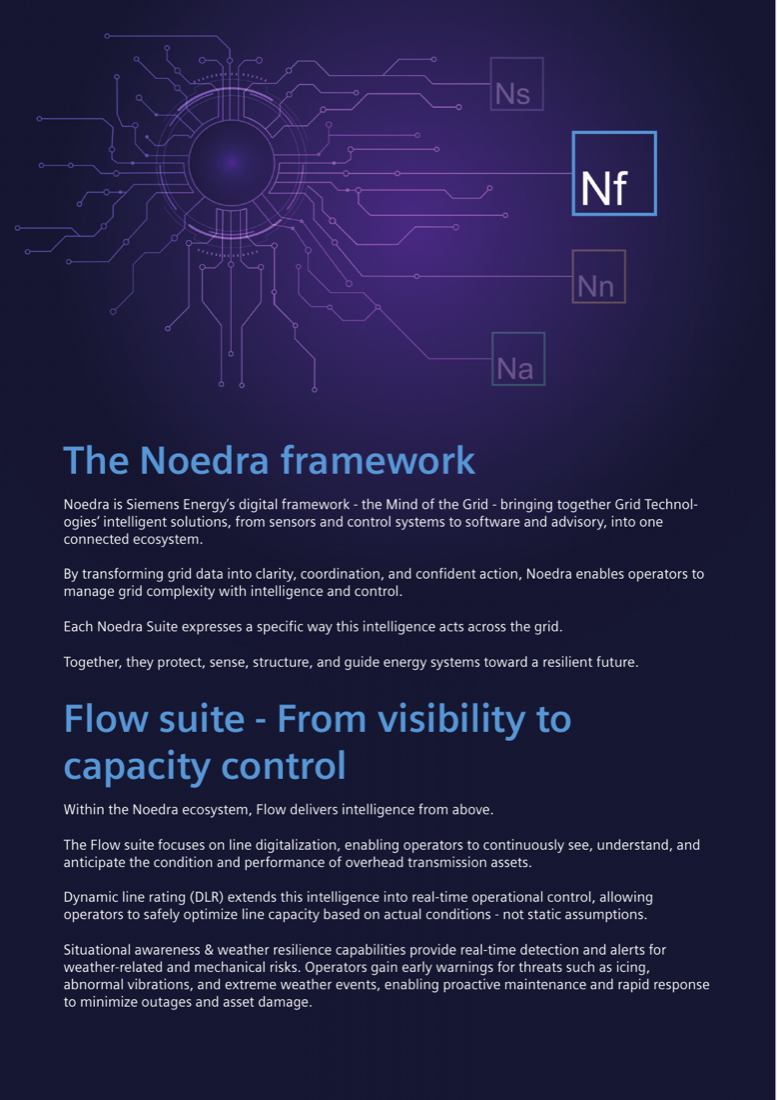

Noedra is Siemens Energy's digital framework — the Mind of the Grid — that unites Grid Technologies' intelligent offerings, spanning sensors, control systems, software, and advisory services, into a single connected ecosystem.
By converting grid data into clarity, coordination, and confident action, Noedra lets operators handle growing grid complexity with intelligence and control. Each Noedra suite embodies a specific way this intelligence acts across the grid; together the suites protect, sense, structure, and guide energy systems toward a resilient future.
Within the Noedra ecosystem, the Flow suite delivers intelligence from above: it focuses on line digitalization so operators can continuously see, understand, and anticipate the condition and performance of overhead transmission assets.
Dynamic line rating (DLR) extends this intelligence into real-time operational control, letting operators safely optimize line capacity based on actual conditions rather than static assumptions.
Situational awareness and weather resilience capabilities add real-time detection and alerts for weather-related and mechanical risks — early warnings for icing, abnormal vibrations, and extreme weather events — enabling proactive maintenance and rapid response that minimize outages and asset damage.
Traditional line ratings rest on conservative, static assumptions that ignore real-world operating conditions such as wind, temperature, solar radiation, and actual conductor behavior. The consequences: available transmission capacity often goes unused, bottlenecks constrain renewable integration, and costly grid reinforcements are triggered prematurely.
Operators simultaneously face mounting regulatory pressure to maximize existing assets while preserving safety and reliability. The Noedra Flow suite — DLR / AAR answers this by enabling continuous, data-driven assessment of safe operating limits, turning real-time environmental and conductor data into actionable capacity insights.
Unlock the true capacity of power lines using real-time data instead of static assumptions. DLR / AAR employ advanced sensor networks and analytics to continuously assess the safe, real-time capacity of overhead lines, allowing operators to maximize asset utilization, ensure regulatory compliance, and make smarter operational decisions.
Real-time capacity optimization: ampacity is calculated in real time from sensors mounted directly on overhead lines that measure conductor temperature, wind speed/direction, current, and ambient conditions — safely maximizing line capacity on actual conditions rather than static limits, unlocking hidden capacity and deferring costly upgrades.
Live insights and scenario analysis: dashboards, alerts, and "what-if" simulations provide real-time visibility, bottleneck identification, and proactive decision support; operators can evaluate scenarios, anticipate constraints, and proactively optimize line performance.
Predictive maintenance: continuous monitoring of the physical behavior of overhead lines — conductor condition, sag, tension, galloping, ageing, and ice formation — yields early warnings and data-driven maintenance planning that reduce unexpected failures.
Regulatory compliance: supports regulations such as FERC 881 by adjusting ratings on real-time ambient temperature, so operators meet required standards while maintaining safe, reliable operation.
The platform combines continuous field measurement with automated rating analytics and secure system integration.
| Capability | Description |
|---|---|
| Real-time monitoring | Current, conductor temperature, wind speed/direction, humidity, and ambient temperature; optional cameras for inclination and visual inspection |
| Analytics | Automated algorithms for dynamic line rating and ambient adjusted rating; sag, tension, galloping, ageing, and ice detection; AI-powered vegetation management and wildfire detection |
| Data processing | Continuous measurement and correlation of line parameters; diagnostics, prognostics, and trending for incipient failures; overload guidance |
| Connectivity & security | Encrypted data to web dashboards; API integration with SCADA and asset management systems; supports standard protocols for seamless integration |
From risk exposure to operational foresight: this capability provides real-time detection and alerts for weather-related and mechanical risks, helping operators maintain grid reliability and prevent outages before they occur.
Icing detection combines sensor data and weather models to detect and quantify ice build-up on power lines, preventing mechanical stress and overload and reducing the risk of line failure and outages.
Vibration monitoring uses high-frequency sensors to detect abnormal vibrations caused by wind or mechanical issues, identifying risks such as galloping or aeolian vibration early and avoiding conductor damage and costly repairs.
Extreme weather transparency enables rapid response to severe events such as wildfires, hurricanes, and heatwaves — minimizing outage risk, protecting assets, and ensuring grid stability during extreme conditions.
| Capability | Description |
|---|---|
| Real-time monitoring | Multi-sensor system for continuous overhead line condition monitoring, including icing and vibration detection |
| Analytics | Automated alerts and predictive algorithms for rapid operational response and risk mitigation |
| Connectivity & integration | Integration-ready with grid control and maintenance systems; secure data transfer to dashboards for live visibility and decision support |
Siemens Energy positions the offering as a partnership rather than a technology purchase, citing five pillars: proven expertise from decades in power systems and grid modernization; global reach that addresses local requirements while meeting global standards; tailored solutions built in close collaboration with each customer's operational needs; trusted long-term advisory partnership; and continuous innovation with ongoing support.
Closing call to action: unlock real-time capacity and operational resilience — maximize transmission performance and grid reliability with Noedra Flow DLR / AAR and situational awareness & weather resilience.
